CG-550 Thin Mix Series

The ChemGrout CG-550 Thin Mix series includes both skid and trailer mounted grouting equipment.

The Thin Mix unit is designed to mix and pump neat cements, bentonites, cement/bentonites, and lightly sanded grout mixes. These units feature a 170 litre mixing tank, a 57 litre holding hopper and a 30 LPM progressive cavity grout pump.

The balanced design of this grout plant allows continuous mixing and pumping, while the hopper is feeding the pump another batch can be mixed.

The mix tank is equipped with baffles, bag breakers and variable speed high-efficiency paddles that provide rapid mixing. The tank outlet valve is a large slide gate that allows the materials to fall easily into the pump hopper.

The grout pump is a variable speed, positive displacement, progressive cavity, rotor-stator pump. Operator controls are centrally located for efficient production.

All components are easily accessible for operating, cleaning, and maintenance.

The trailer mounted unit is road and job site ready equipped with leaf springs, lights and a working platform.

CG-550 Thin Mix Grouter Series Grout Plant

$0.00Price
  • Applications

    Soil & rock, void filling, waterproofing, anchor, cable, rock bolts, encasements, marine/underwater, well casing, abandon shafts/holes, post tensioning, machine base, underlayments, undersealing, slab raising & bridge rehab.

  • Specifications

    Model

    Progres.

    Cavity

    Pump

    Model

     Mixing

    Tank

    Holding

    Hopper

    Max.

    Output

    Max.

    Pressure

    CG550/

    2L4
    CG550/

    3L4

    2 Stage,

    Size 4,

    Flanged

    Inlet
    3 Stage,

    Size 4,

    Flanged

    Inlet

    170

    Litre

    56

    Litre

    30

    LPM

    174

    PSI



    261

    PSI

  • Requirements, Weights & Dimensions

     Model

    Number

    Description

    Dimensions

    Weight

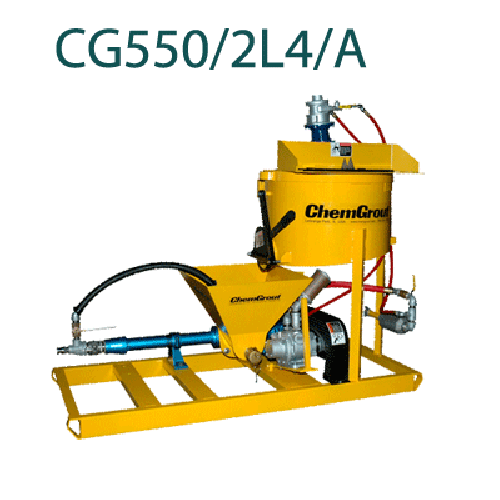

    CG550/

    2L4/A

    Skid Mounted Air

    Powered Grout Plant
    Requires 150 CFM,

    100 PSI

    1.9m L X

    0.8m W X

    1.3m H

    249 kg

    CG550/

    2L4/H

    Skid Mounted

    Hydraulic Powered

    Grout Plant
    Requires 12 GPM,

    1200 PSI

    1.9m L X

    0.8m W X

    1.3m H

    249 kg

    CG550/

    2L4/EHS

    Skid Mounted Electric/

    Hydraulic Grout Plant
    Requires 230 V, 36 A,

    Single Phase or
    Three Phase Requires

    230/460 V, 38/19 A

    1.9m L X

    0.8m W X

    1.3m H

    362 kg

    CG550/

    2L4/GH

    Skid Mounted Gas/

    Hydraulic Grout Plant
    Self-Contained  8 HP

    Honda Gas Engine

    Pull Start

    1.9m L X

    0.8m W X

    1.3m H

    349 kg

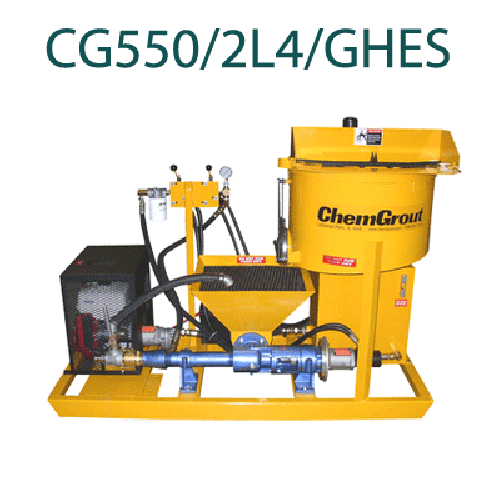

    CG550/

    2L4/

    GHES

    Skid Mounted Gas/

    Hydraulic Grout Plant
    Self-Contained  13 HP

    Honda Gas Engine

    Electric Start

    1.9m L X

    0.8m W X

    1.3m H

    349 kg

    CG550/

    2L4/DH

    Skid Mounted Diesel/

    Hydraulic Grout Plant
    Self-Contained  Heavy

    Duty Diesel Engine

    1.9m L X

    0.8m W X

    1.3m H

    408 kg

    CG555/

    2L4/

    GHES

    Trailer Mounted Gas/

    Hydraulic Grout Plant
    Self-Contained  13 HP

    Honda Gas Engine

    2.8m L X

    1.7m W X

    1.8m H

    635 kg

    CG555/

    2L4/

    DHES

    Trailer Mounted Diesel/

    Hydraulic Grout Plant
    Self-Contained Heavy

    Duty Diesel Engine

    2.8m L X

    1.7m W X

    1.8m H

    657 kg
