Geothermal &
small Water Well Rigs

Drill Connex offer a small range of small diameter Geothermal and small diameter Water Well Drilling Rigs. Compact and powerful units that offer Rotary Drilling and DTH Hammer Drilling/H20. Some units offer 360 degree rotation and most units are Radio Remote Control.

Ripamonti Geothermal 520 Drilling Rig

Total Width: 780mm - 1150mm
Total Length: 4200mm
Height: 2100mm
Tracks: Steel or Rubber
Weight: 2500kg - 3000kg
Stroke: 1800mm - 2300mm
Controls: Radio Remote Control
Type: Diesel or Electric
Pull Back / Down: 1500kg - 2250kg

Geothermal Drill 520

Ripamonti Geothermal 620 Drilling Rig

Structure: 360 Rotation
Tracks: Steel or Rubber
Weight: 6000kg
Engine: Kubota Diesel Turbo
Controls: Radio Remote Control
Mast Type: S300
Stroke Length: 2300mm standard
Pull Back /Down: 4500kg

Geothermal Drill 620

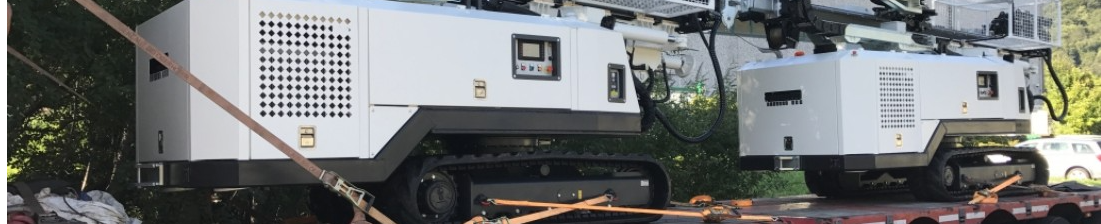

Ripamonti Geothermal 820 Drilling Rig

Tracks: Steel or Rubber
Length: 2572mm
Weight: 8000kg
Controls: Radio remote Control
Engine: Kubota Diesel Turbo
Stroke Length: 3300mm standard
Pull Down / Back: 6500kg

Geothermal Drill 820

Also contact us for all your Ripamonti equipment Parts and Servicing needs.
