Drilling Attachments
Drill Connex offer a massive range of Drilling Attachments for Hydraulic Excavators, Skid Steer Units, Telehandlers, Spider Cranes/Rigs and more. Our Drill Attachment applications are Anchor Bolt Drilling, Augering, Blast Hole Drilling, DTH Drilling, Rotary Drilling, Percussion Drilling, RC Drilling, Solar Install Applications & Rock Splitter Borehole Drilling to mention a few.
Drill Connex drill attachments come as a standard package or custom built to suit your specific needs.
Drill Connex offer Rotary, Rotary/Percussion, Percussion & Pneumatic packages.
Contact Drill Connex today to discuss the scope of your project/s and therefore find a suitable solution.
EXCAVATOR ATTACHMENTS
Price on Application
CPA 222E Drilling Attachment
Montabert Drifter: HC50
Hole Diameter: 36–76 mm (1.4–3.0 in)
Feed Length: 6,073 mm (6.07 m / 19.9 ft)
Maximum Hole Length: 7.4 m (24.3 ft)
Type of Rod: R32–T38
Rod Changer: Rod adder (optional)
Feed Swing: 4 × ±47°
Air Requirement: 4,000 L/min (141 CFM)
Dust Collector: Hydraulic
CPA Weight: 1,610 kg (3,549 lb)
Carrier Weight: 20–27 tonnes
Hydraulic Requirement: 160–180 L/min at 200 bar
Optional CE Protection: Virtual barrier
Drifter: 14 kW (18.8 HP)
RPM: 0–235 RPM
Price on Application

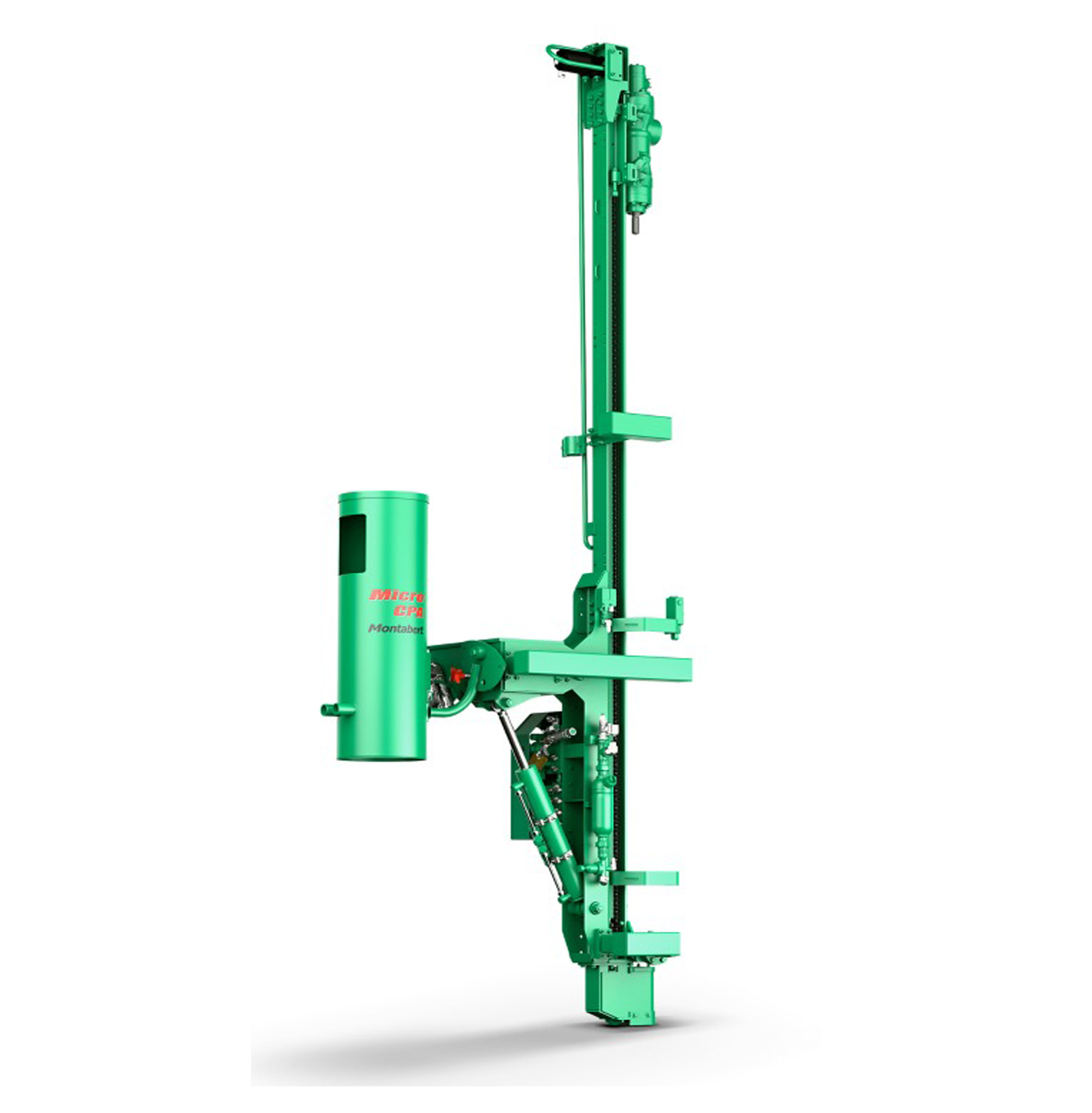

Montabert Micro CPA Drilling Attachment
Working Weight: 680 kg (1,499 lb) standard
Hydraulic Drifter Model: HC20 (4.5 kW) or HC25 (9 kW)
Carrier Size: 9–12 tonnes (recommended)
Hydraulic Flow Rate: 60–95 L/min
Operating Pressure: 165 bar maximum (2,393 psi)
Flushing Air Flow: 3–4 m³/min (106–141 CFM)
Shank Adaptor: R22, R25, R32, T38
Hole Diameter: 26–51 mm (1.0–2.0 in)
Maximum Depth: 3.2 m from 3,660 mm lead rod (10.5 ft from 12.0 ft lead rod)
Drifter: 4.5 kW or 9 kW (6.0 or 12.1 HP)
RPM: 0–300 RPM
Price on Application
Micro CPA 360 Drill Attachment
Working Weight: 780 kg (1,720 lb)
Drifter Model: HC20 (4.5 kW) / HC25 (9 kW)
Carrier: 10–14 tonnes (recommended)
Hydraulic Flow Rate: 60–95 L/min
Hydraulic Operating Pressure: 165 bar (2,393 psi)
Flushing Air Flow: 4 m³/min (141 CFM)
Shank Adaptor: R22, R25, R32, T38
Hole Diameters: 26–51 mm (1.0–2.0 in)
Maximum Drill Depth: 3.2 m (10.5 ft) from the 3,660 mm lead rod (12.0 ft)
Drifter: 4.5 kW or 9 kW (6.0 or 12.1 HP)
RPM: 0–300 RPM
Rotation: 360°
Price on Application

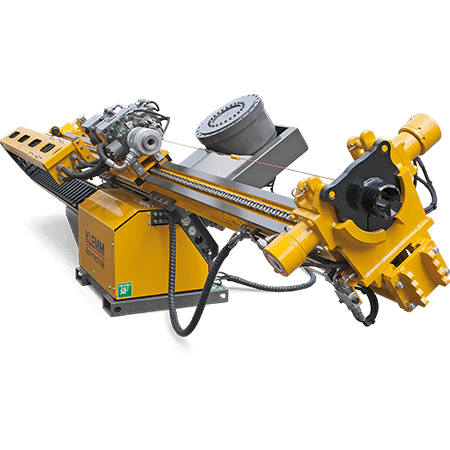

Klemm KA140 Drilling Attachment
Micro-piles, Anchors, Soil Nails
High Torque Rotary Heads
Hole Diameters: up to 350mm
Length: 5,500 mm (5.5 m)
Travel Length: 4,500 mm (4.5 m)
Feed Force: 30 kN (6,744 lbf)
Retractive Force: 30 kN (6,744 lbf)
Feed Speed: 13 m/min
Fast Feed Speed: 40 m/min
Electrical: 24 V system
Excavator Weight: 16 tonnes or larger
Hydraulic Flow: 140–250 L/min
Maximum Hydraulic Pressure: 250 bar
Price on Application
Klemm KA162 Drill Attachment
Micro-piles, Anchors, Soil Nails
High Torque Rotary Heads
Length: 5,500 mm (5.5 m)
Travel Length: 4,450 mm (4.45 m)
Feed Force: 60 kN (13,489 lbf)
Retractive Force: 60 kN (13,489 lbf)
Feed Speed: 7 m/min
Fast Feed Speed: 36 m/min
Electrical: 24 V system
Magazine: No
Excavator Weight: 28 tonnes or larger
Hydraulic Flow: 140–280 L/min
Maximum Hydraulic Pressure: 270 bar
Working Pressure: 220–270 bar
Price on Application
Ripamonti EX224 SD250 Drilling Attachment
DTH Hole Diameters: 76–200 mm (3.0–7.9 in)
Drifter Hole Diameters: 35–102 mm (1.4–4.0 in)
Rotary Percussion: 64–102 mm (2.5–4.0 in)
Carrier: 10-tonne excavator or larger
Stroke: 1.5 m standard (3.3 m optional)
Controls: Radio remote control
Price on Application
Montabert CPA 28 050 Drilling Attachment
Working Weight: 2,570 kg (5,666 lb)
Hydraulic Drifter Model: HC50 (12–14 kW)
Carrier: 28–35 tonnes
Hydraulic Flow: 185–195 L/min
Hydraulic Operating Pressure: 200 bar maximum (2,900 psi)
Flushing Air Flow: 7 m³/min (247 CFM)
Shank Adaptor: T38, T45
Hole Diameters: 64–76 mm (2.5–3.0 in)
Maximum Hole Depth: 15 m (49.2 ft)
Drifter: 14 kW (18.8 HP)
RPM: 0–235 RPM
Price on Application
Montabert CPA30-095 Drilling Attachment
Working Weight: 2,630 kg (5,798 lb)
Hydraulic Drifter Model: HC95
Carrier Size: 28–35 tonnes
Hydraulic Flow Rate: 195–205 L/min
Hydraulic Operating Pressure: 220 bar maximum
Flushing Air Flow: 8 m³/min (282 CFM)
Shank Sizes: T38, T45, T51
Borehole Diameters: 76–102 mm (3.0–4.0 in)
Maximum Depth: 29.8 m (97.8 ft)
Drifter: 21 kW (28.2 HP)
RPM: 0–303 RPM
Price on Application
Montabert CPA30-150 Drilling Attachment
Working Weight: 2,650 kg (5,842 lb)
Hydraulic Drifter Model: HC150
Carrier Size: 28–35 tonnes
Hydraulic Flow Rate: 210–230 L/min
Hydraulic Operating Pressure: 200 bar maximum
Flushing Air Flow: 10 m³/min (353 CFM)
Shank Sizes: T45, T51
Borehole Diameters: 76–115 mm (3.0–4.5 in)
Maximum Depth: 29.8 m (97.8 ft)
Drifter: 21 kW (28.2 HP)
RPM: 0–175 RPM
Price on Application
Montabert CPA35-160 Drilling Attachment
Working Weight: 4,000 kg (8,818 lb)
Hydraulic Drifter Model: HC160
Carrier Size: 28–40 tonnes
Hydraulic Flow Rate: 190–200 L/min maximum
Hydraulic Operating Pressure: 270 bar maximum
Flushing Air Flow: 12 m³/min (388 CFM)
Shank Sizes: T45, T51, GT60
Borehole Diameters: 76–127 mm (3.0–5.0 in)
Maximum Depth: 30.9 m (101.4 ft)
Drifter: 28 kW (37.5 HP)
