Soil Sampling Rigs & Equipment

AMS PowerProbe Rigs feature Direct Push drilling technology and Hollowstem Augering capabilities.


They have gained widespread acceptance in many industries due to their versatility, relatively low cost, and ease of mobility. Mounted on utes, trailers, or tracks, AMS PowerProbe direct push drill rigs are capable of retrieving soil, soil gas, and groundwater samples, as well as conducting a wide variety of environmental and geotechnical drilling activities.



AMS PowerProbes can access areas within buildings or off-road areas, and allow for collection of continuous core or discrete samples. The combination of direct push and hollowstem augering technologies allows for a great deal of versatility and assures completion of comprehensive and complex field work.



Compared to conventional drilling activities, direct push technology is less labour intensive, offers quicker setup time, and generates significantly less cuttings. It is also quicker and easier to decontaminate and maintain direct push tooling.

9100 Series PowerProbes

The 9110 Ag-Probe is the newest model in the AMS PowerProbe line up, designed for use in agricultural and environmental sampling. This model can be mounted on most standard UTV units that meet the standard weight limits. The 9110 Ag-Probe is powered by a self-contained 13 HP Honda Gas Engine with Electric Start.



This model was designed for the user in mind with a collapsible mast to have a transport height of 80 inches to be able to fit inside most enclosed trailers.

9110 Ag Probe UTV

9110 AG Probe

9110 Ag Probe TR
Ag Probe Tractor
9110 Ag Probe soil sample
Shallow Soil Sample

9110 AG Probe TR

The 9110 AG-Probe TR is the newest model in the AMS PowerProbe line up.

It is designed for use in agricultural and environmental sampling. This model can be mounted on most standard tractors that meet the standard weight limits.



The 9110 Ag-Probe TR is powered by the Power Take Off (PTO) from the tractor. It is designed for the customer that already owns the carrier vehicle or tractor. This saves time and money on the initial capital investment.

9110 LAP & Power Pack
9110 LAP 6
9110 LAP
9110 LAP
Small Direct Push Unit

9110 LAP & Power Pack

The 9110-LAP PowerProbe is a portable direct push rig, designed for use in confined spaces or buildings where a vehicle-mounted probe cannot go.



This model can be driven off any standard AMS PowerProbeª with an auxiliary hydraulic hook-up kit, or the optional AMS portable hydraulic power unit.

The 9110-LAP comes standard with a 90 ft-lb hydraulic hammer.

9120 RAP Soil Sample
9120-RAP detach

The AMS 9120-RAP PowerProbe machine is a new and improved design for the 9100 series models that allows you to use a UTV style 4x4 or 6x6 to get in remote jobsites for shallow Direct Push applications with 1.2m DP Extensions.



This model comes standard with our 90-ft-lb hydraulic hammer to sample in almost any type of soil condition you run in to.

The 9120-RAP can be set up as a "quick detach" from the UTV machine if you need to Heli-Lift by air into remote locations with or without roads.

Drill Connex 9120 RAP
Auger Sampling
9120 RAP on Ute

9120-RAP PowerProbe

9120-RAP diesel
9120-RAP detach
Drill Connex 9120-RAP

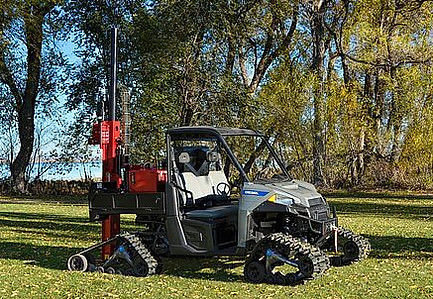

9120-RAP D PowerProbe

The AMS 9120-RAP-D (Diesel version) PowerProbe machine is a new and improved design for the 9100 series models that allows you to use a UTV style 4x4 or 6x6 to get in remote jobsites for shallow direct push applications with 1.2m DP Extensions.



This model comes standard with our 90-ft-lb hydraulic hammer to sample in almost any type of soil condition you run in to.

The 9120-RAP-D can be set up as a quick detach from the UTV machine if you need to Heli-Lift by air into remote locations with or without roads.

Soil Sampler Automatic

9120-SK PowerProbe

If you are looking for the most portable and manoeuvrable track system, without sacrificing power or performance, there is no other small Direct Push model like the 9120-SK.

The rugged rubber tracks keep the unit moving when soil conditions get soft, wet or muddy with minimal disturbance to the work site.

The probe can easily be removed to allow the use of the carrier vehicle and its accessories such as the bucket, pallet forks, and backfill blade.

9130 VTR Powerprobe

9130-VTR PowerProbe

If you are looking for the most portable and manoeuvrable track system, without sacrificing power or performance, there is no other small Direct Push model like the 9120-SK.

The rugged rubber tracks keep the unit moving when soil conditions get soft, wet or muddy with minimal disturbance to the work site.

The probe can easily be removed to allow the use of the carrier vehicle and its accessories such as the bucket, pallet forks, and backfill blade.

Auto Field Sampler

9400 Series PowerProbes& PowerCore

9400 Series & Powercore
PowerCore 9400 Drill

The AMS PowerCoreTM 9400 allows you to limit the number of employees needed on site.

This asphalt & concrete coring system provides a convenient, cost-effective method for retrieving a sample of concrete or asphalt for materials tests, or to collect soil samples from below the pavement.  You can collect clean core samples or easily collect intact concrete and asphalt cores for testing and sampling.

The PowerCoreTM 9400 is set up with a high-speed hydraulic core motor and our standard direct push 90 ft-lb. hydraulic hammer used for direct push soil sampling so you can collect semi-undisturbed soil samples below the surface.

All trailer and truck-mounted models can be customised with on-board generators, a slurry-vac system, a 300 litre fresh-water tank, a 300 litre recovery waste-water tank, tooling racks, and lockable aluminium storage compartments to fit your specific needs.

Optional two rear-mounted outrigger jacks for increased stability are also available.

PowerCore 9400

9400 PowerCore Truck

PowerCore

The AMS PowerCore Asphalt & Concrete Coring System is a convenient, cost efficient method for retrieving a soil sample covered by concrete pavement.

Rather than having to remove large sections of the concrete or asphalt, simply bore through a small area of the pavement and collect multiple clean core samples.

The AMS PowerCore Asphalt & Concrete Coring System mounts to any compact, full-sized ute or trailer.

A unique and versatile mounted slider system allows for easy in-and-out as well as side-to-side motion. This allows the user to take multiple samples without having to reposition their rig.

Two rear-mounted outrigger jacks increase stability. Front-mounted outrigger jacks can be added for additional stability. They also make loading, unloading, and storage of the PowerCore system quick and simple.

AFS Sampler.webp
Auto Field Sampler 2.webp

Small Soil Sampler

For those seeking to boost field productivity without hiring additional staff, the Auto Field Sampler (AFS) is the perfect solution.

The AFS will retrieve a 22mm diameter soil core from 0 to 300mm deep.

A 300mm core sample can be taken within 5.5 seconds and automatically deposited into a collection container for a composite sample. The collection container can hold approximately 6 to 10 samples before being filled to capacity. Once the soil collection container is full, simply empty all of the contents into boxes or bags for soil analysis, then, reinsert the collection container into the holder on the AFS so soil sampling can be continued. Soil Sampling depths can be adjusted at any time.

AFS Sampler.jpg
Quad Bike Sampler.webp
AMS AFS.webp
9400 Soil Sampler
AMS 9400 Drill
9400 Control Bank
9400 Rotary Head
9410 AMS PowerCore Rig
9410 PowerCore
9410 PowerCore
9410 sample drill rig
9410 drill Rig Toolbox

PowerCore 9410

The AMS PowerCoreTM 9410 allows you to limit the number of employees needed on site. Each model is set up with our standard Direct Push capability by using a 200 ft-lb. hydraulic hammer along with a 2400 ft-lb. hydraulic core motor that can core through concrete and asphalt to allow access for the collection of intact continuous soil cores.

The PowerCoreTM 9410 model has all the same features and robust design as our Direct Push machines. It’s powered by a Kohler KDI 1903 (Tier4F) Turbo Diesel engine that provides plenty of power. It powers a 3,000 ft-lb torque auger motor at 50 RPM on low, 150 RPM on high, and a 3rd position for high-speed coring up to 650 RPM.

Matched with our 200 ft-lb direct push hammer, new 1.8m stroke mast oscillation design, and optional 3,000 ft-lb overhead winch system makes this the most versatile truck-mounted PowerCoreTM we have ever built. Also available is our mast mounted auto-drop hammer to access all of the geotechnical demands in today’s market. All trailer and truck-mounted models can be customized with on-board generators, a slurry-vac system, a 283 litre fresh-water tank, a 283 litre recovery waste-water tank, tooling racks, and lockable aluminum storage compartments to fit your specific needs.

"We use the AMS PowerCore Coring System for pavement evaluations on asphalt and concrete highways. Since the PowerCore design does not require a dedicated vehicle, this has given us greater versatility in the use of our equipment and manpower. This combined with its ease of operation has proven to be a safe, productive, and efficient addition to our equipment complement."


--Idaho Transportation Department

9410 VTR PowerProbe
9410 VTR drill
AMS Drill rig
9410-VTR Australia

9410 VTR

The AMS PowerProbe 9400 Series is our mid-sized PowerProbe.

The track-mounted 9410 VTR is compact for limited access areas being 1.42m wide, but maintains great augering (3,000 ft-lb) and direct push drilling (200 ft-lb) power.

Fully loaded with all options (winch, SPT Hammer, Direct Push Hammer, and Auger Motor), it has a surface load of only 5.6 psi, which offers you many options in a small areas.

The hydraulic system is load sensed which allows for better operating efficiency and fuel economy. The front blade tool tote with sample prep tray allows for in the field processing of samples and along with added tool storage so you can take most everything you need from drill location to drill location.

9500 Series

9500 Series PowerProbes

9500 Series Powerprobe

9500 Series

The AMS PowerProbe 9500 Series combines high-powered Direct-Push and Auger capabilities with operator-friendly engineering.

The track-mounted 9500-VTR all-terrain model can easily gain access to on or off-road sampling points, and with a surface load of only 4.9 psi, the 9500-VTR can also position on softer surfaces with relative ease.



The 9500-D (Diesel) and 9500-G (Gasoline) PowerProbe models utilise a standalone power source and are most typically Truck-Mounted. With a wide array of Tooling/Supply Storage options, the truck-mounted models allow you to keep your operation mobile for extended periods without support vehicles. The 9500-D also provides for an optional Trailer Mount.

9520D PowerProde drill
9520D AMS Mast Up
9520D Direct Push
9520D Direct Push drill
9520D Drill Functions

9520-D PowerProbe

The AMS 9520-D (Diesel) PowerProbe runs off of a 60 hp liquid-cooled, turbo-charged diesel engine. It comes standard with a 350 ft-lb hydraulic hammer for Direct Push, groundwater, soil gas, and remedial injection type sampling.



Like the 9520-VTR, this model can also be equipped with our 4,000 ft/lb auger motor and 3,000lb winch assembly. This model comes standard with an 2.0m probe stroke that will allow for the use of 1.5m tooling.

9520 SK PowerProbe

9520-SK PowerProbe

The AMS PowerProbeª 9520-SK models include a 1.8m probe stroke to allow use of 1.2m tooling and a

90 ft-lb hammer with more options available.

If a HollowStem auger capability is what you need, we have given you a choice of two auger drive head options that can be added to your skid steer model. Some carrier vehicle requirements are needed dependent on your choices.

9520 TR Tractor Drill
9520 TR PowerProbe
9520 TR Mast
9520 TR Auger Drilling
9520 TR

9520-TR PowerProbe

The AMS 9520-TR PowerProbe comes standard with the

90 ft-lb hydraulic hammer, and the option to upgrade to other hammer models.

For those situations where you need to install groundwater monitoring wells, you can add an auger drive head. With the choice of two different auger drive heads, and 2 different hammer options, you can't go wrong with the 9520-TR.

Some carrier vehicle requirements may be required dependant on the options chosen.

9520-TR

9520-VTR PowerProbe

The new AMS 9520-VTR PowerProbe™ is a versatile drill rig that can be used in most Environmental and Geotechnical applications.

While retaining many of the same features of our larger PowerProbes™, the track-mounted 9520-VTR all-terrain model utilizes a smaller carrier and has the added benefits of more HP, improved fuel economy and emissions, positionable control panel, updated hydraulics, auxiliary output connections, and dual dozer blade verses the current comparable-sized AMS model (the 9500-VTR).

9520-VTR PowerProbe
9520 VTR Drill Side on
9520 VTR Left side

9580-VTR PowerProbe

The new AMS 9580-VTR PowerProbe™ is powered by a

tier 4, 60 HP John Deere liquid-cooled diesel engine, and has an increased diesel fuel storage to 120 litres.

The new auger and hammer system has hydraulic pivot and locking systems, and the hammer, auger motor, winch, and auto-drop can all be positioned over the same borehole without realigning or repositioning the machine.

The new auto-drop hammer has improved hammering capability and functionality, and the new 3,000 lb. hydraulic hi-speed winch requires less operator attention.

The rig also features a stronger mast with a larger foot for increased stability, and has a more compact height and width – as well as a fully equipped weight under 5,443kg with a lower centre of gravity. We have added a new hydraulic tooling rack with increased rod carrying capacity, a multi-functioning dozer blade, an all new control panel that allows you to run everything from a single position.

9580 VTR PowerProbe
9580 VTR Australia
9580 VTR AMS Side On
9580 VTR Drill
Auto Field Sampler

Auto Field Sampler

The AMS Auto Field Sampler is easy to operate from the seat of the carrier vehicle using two simple
switches. Switch 1 toggles between the “Auto Run Function” and a “Retract” function, and Switch 2
is a momentary switch that runs or pauses the selected function of switch 1.
The Auto Field Sampler has the capability to take a sample from the surface at adjustable depths up
to 600mm deep and deposit it into a single collection container. That depth can easily be adjusted
by the operator with a manual knob. If desired the sample can be split and deposited into two
separate containers at increments predetermined by the operator with a second easily adjustable manual knob.
