Product Description

The Air Connex 1070CFM/24BAR high pressure Electrical Air Compressors offer state of the art high efficiency motors, low consumption, low maintenance costs and low noise levels. These units comply with the NEMA and IEC standards.

These units are suitable for: Tunneling, Sand Blasting, Infrastructure Construction, Oil & Gas, Mining, Drilling and Marine applications where the required power supply is available.


Features & Benefits:

  • Screw Air-end Super Rotor, low speed (5 years/10000 hours warranty)
  • International Warranty Service with IP54 protection
  • Quality Controller System
  • Safe and Reliable Air Filter System
  • Advanced & Energy-saving Intake System.


Technical Specifications:

Compressor StageSingle Stage
Free Air Delivery (CFM/   M3/min)1070/30.3
Working Pressure (psig/bar)348/24 bar
Screw Oil Volume-(L)140L
Motor ModelYE2-355M2-4
Rated Power (KW)250 KW
Rated Speed/Idle (rpm)1,490
Connector Size*QtyG3/4" *1, G   2"* 1
Wheel Size*Qty7.50-16*4
Weight (Kgs)5,500Kg
Dimension (mm)4,885 * 2,100 * 2,700mm
Noise {dB(A)}72±3
Working Temp.(℃)-10℃~50℃(special conditions can be customized)

 Note: Specifiations are subject to change without further notice.

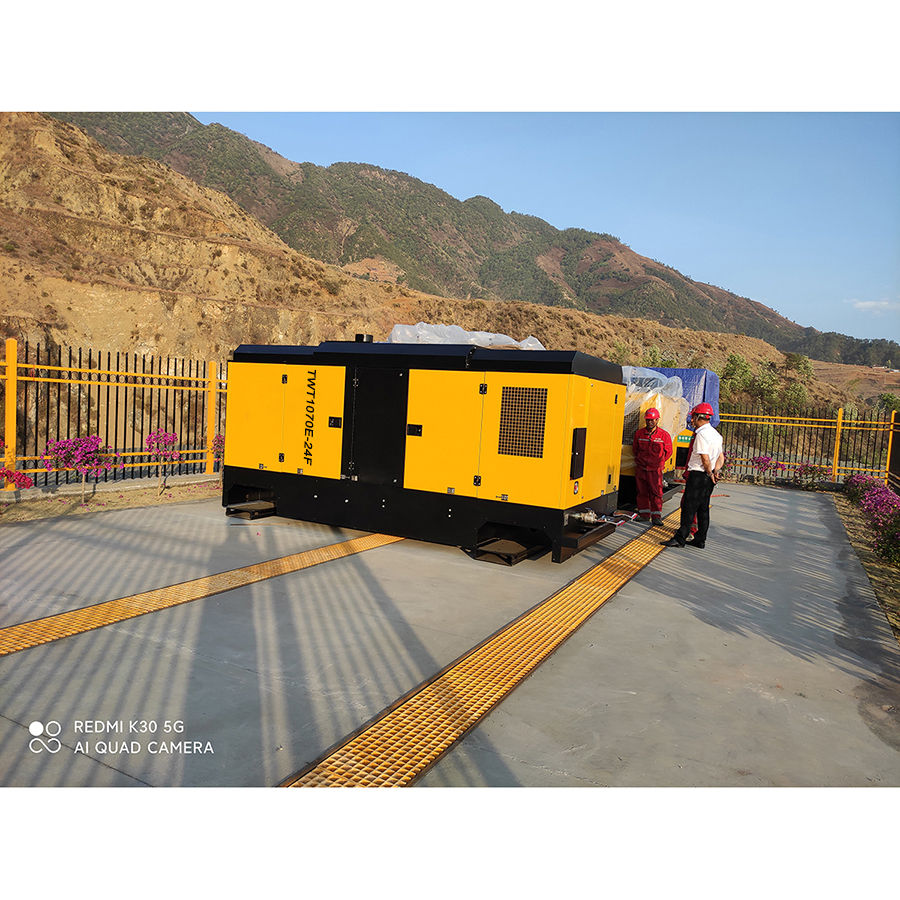

Air Compressor Electric 1070CFM / 350PSI

SKU: TWT1070E-24T
