Product Description

The Air Connex 830CFM/13BAR portable Air Compressors offer state of the art high efficiency motors, low consumption, low maintenance costs and low noise levels. These units comply with the NEMA and IEC standards.

Suitable applications are: Tunneling, Sand Blasting, Marine, Construction, Oil & Gas, Mining and other applications that have the required power supply.


Features & Benefits:

  • Screw Air-end Super Rotor, low speed (5 years/10000 hours warranty)
  • International Warranty Service with IP54 protection
  • Quality Controller System
  • Safe and Reliable Air Filter System
  • Advanced & Energy-saving Intake System.


Technical Specifications:

Compressor StageSingle Stage
Free Air Delivery (CFM/   M3/min)830/23.5
Working Pressure (psig/bar)188.5/13 bar
Screw Oil Volume-(L)90L
Motor ModelYE2-315L-4
Rated Power (KW)180 KW
Rated Speed/Idle (rpm)1,485
Connector Size*QtyG3/4" *1, G   2"* 1
Wheel Size*Qty7.50-16*2
Weight (Kgs)4,800Kg
Dimension (mm)4,700 * 2,100 * 2,200mm
Noise {dB(A)}72±3
Working Temp.(℃)-10℃~50℃(special conditions can be customized)

 Note: Specifiations are subject to change without further notice.

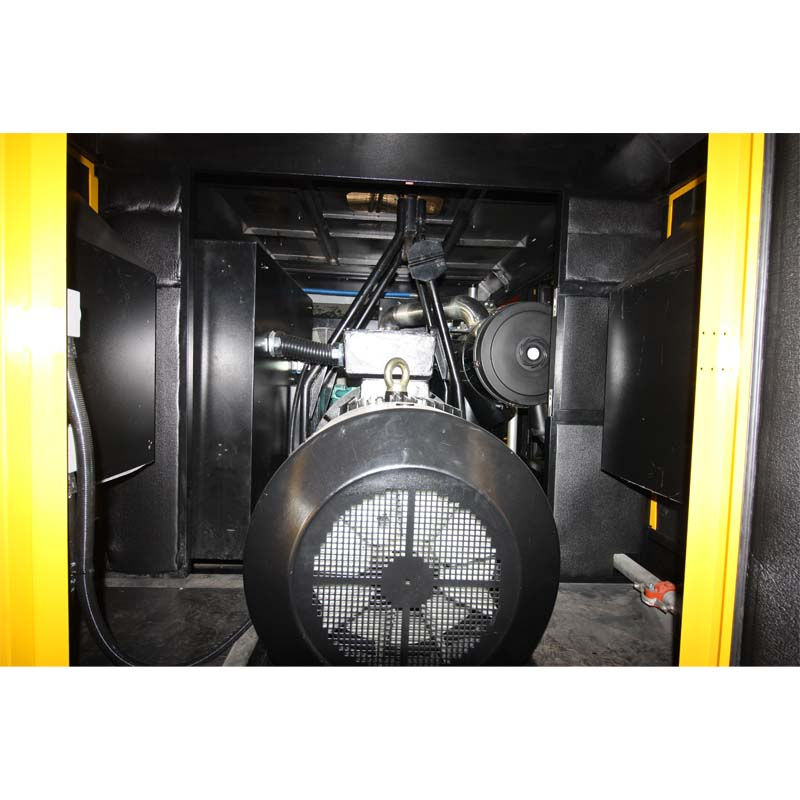

Air Compressor Electric 830CFM / 188PSI

SKU: TWT830E-13T
