CG-550/030 Rugged High Pressure Series
The ChemGrout CG-550/030 Rugged High Pressure series includes both skid and trailer mounted grout plants.
These units feature a 170 litre mixing tank, a 57 litre or 113 litre holding hopper and the popular single-acting 3″ piston grout pump. Each mixing tank is equipped with baffles, bag breakers and a variable speed high-efficiency paddle mixer that provides rapid grout mixing.
The tank outlet is a large slidegate that allows viscous grouting materials to flow quickly into the removable holding hopper. The large holding hopper is sized to provide continuous pumping, the mixer is charged while the hopper feeds the pump.
The grout pump is a 3″ positive displacement, pulsating piston pump that disassembles with only a hammer for fast and thorough cleaning. The rugged steel frame stands up to the toughest conditions on the job site. Operator controls are centrally located for efficient production.

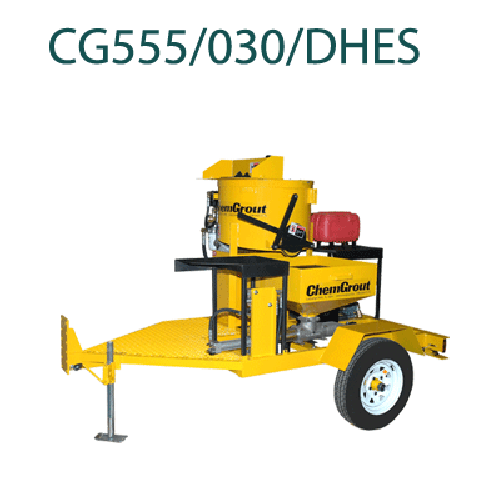

The trailer mounted unit is road and job site ready equipped with leaf springs, lights and a working platform.
CG-550/030 Rugged High Pressure Series Grout Plants
Civil Engineering – soil nails, tiebacks, earth anchors, cable and rock bolts
Structural – foundation stabilization, foundation raising, soil compaction grouting
Construction – pavement undersealing , slabjacking and slab raising
Marine – underwater foundations, piers, breakers, shoreline foundations
Mining – tunnel lining, contact grouting, shaft waterproofing
Utilities – encasements, waterproofing, slope line grouting
Geotechnical – deep well casing, monitor wells, well sealing and abandonment
