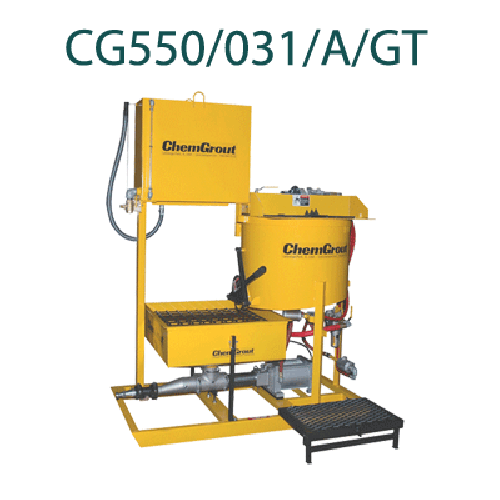

• CG-550 Geotech Series

    The ChemGrout CG-550 Geotech Series includes both skid and trailer mounted grout plants.

    These units feature a 264 liter mixing tank, a large 170 liter holding hopper and the rugged single-acting 3″ piston grout pump. The mixing tank is equipped with baffles, bag breaker and a variable speed high-efficiency paddle mixer that provides rapid grout mixing.

    The tank outlet is a large slide gate that allows viscous grouting materials to flow quickly into the removable holding hopper.

    The large holding hopper is sized to provide continuous pumping, the mixer is charged while the hopper feeds the pump. The grout pump is a 3″ positive displacement, single acting piston pump that disassembles with only a hammer for fast and thorough cleaning.

    The rugged steel frame stands up to the toughest conditions on the job site. Operator controls are centrally located for efficient production.

    The trailer mounted unit is road and job site ready equipped with leaf springs, lights and a working platform.



    CG-550 Geotech Series

    $0.00Price
    • Geotechnical – geothermal grouting, deep well casing, monitor wells, well sealing and abandonment

      Marine – underwater foundations, piers, breakers, shoreline foundations

      Utilities – encasements, waterproofing, slope line grouting
