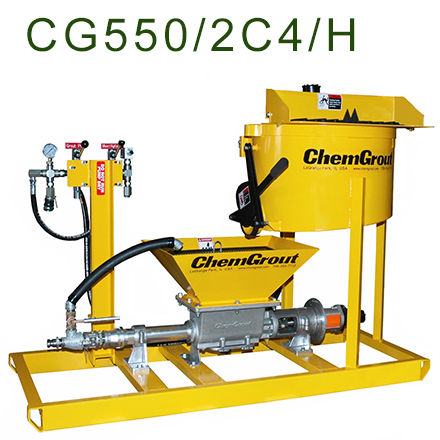

CG-550 Workhorse Series

The ChemGrout CG-550 Workhorse series includes both skid and trailer mounted grouting equipment.

This workhorse unit is designed to mix and pump neat cement, bentonite, cement/bentonite, cement/sand, non-shrink, self leveling and most packaged grout mixes.

These units feature a 170 litre mixing tank, a 45 litre holding hopper and a 30 LPM progressive cavity grout pump.

The balanced design of this grout plant allows continuous mixing and pumping, while the hopper is feeding the pump another batch can be mixed.

The mix tank is equipped with baffles, bag breakers and variable speed high-efficiency paddles that provide rapid mixing. The tank outlet valves are large slide gates that allow the thickest materials to fall easily into the pump hopper.

The grout pump is a variable speed, positive displacement, progressive cavity, rotor-stator pump.

Operator controls are centrally located for efficient production. All components are easily accessible for operating, cleaning, and maintenance.

The trailer mounted unit is road and job site ready equipped with leaf springs, lights and a working platform.

CG-550 WorkHorse Series Grout Plants

  • Soil & rock, void filling, waterproofing, anchor, cable, rock bolts, encasements, marine/underwater, well casing, abondon shafts/holes, post tensioning, machine base, underlayments, undersealing, slab raising & bridge rehab.
