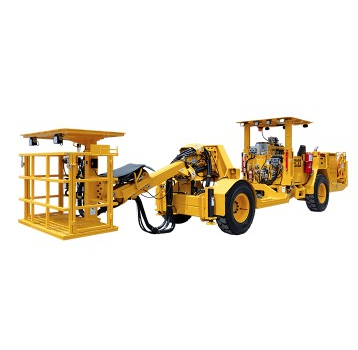

The Resemin EMULSION CHARGER EC22 is a heavy-duty utility vehicle for Underground Mines with sections of 3.5m x 3.5m to 5m x 5m.
The EC22 Emulsion unit has a capacity of 2000kg. Heavy Duty articulated chassis, 4WD self-propelled with Diesel Engine (Caterpillar C4.4 ACERT, Tier 3 of 106 kW). Both the Roof of the Cabin and the Basket are FOPS and ROPS certified.

Specifications:
Basket :
Loading Capacity - 300kg
Hose Reel - 20m
Hydraulic Arm Control
FOPS Certification

Boom :
Model - 4AP-EC22
Boom Extension - 1200mm
Lift Angle - +47° / -24°
Swing Angle - ±30°
Hydraulic Cylinders - Parker

Carrier :
Model - EC22
Diesel Engine - Cat C4.4 ACERT, Tier 3, 106kW @ 2200rpm
Transmission - Hydrodynamics
Powershift Gearbox - Dana T12000
Diff axle - Dana, Series 12
Tramming Speed - 15 km/h
Service Brakes - Wet discs, POSI STOP
Emergency and Parking Brakes - SAHR
Tyres - 12.00 - R20
Hydraulic Jacks - 2 extendable front
Canopy - FOPS / ROPS certification (includes 2 seats)
Fuel Tank - 120 litres
Battery - 2 x 12V, 90 Ah
Electric System - 24 VDC
Centralised Greasing System - SKF
Automatic Fire Suppression - ANSUL, 4 Nozzles
Fire Extinguisher - 1 x 6kg, ABC Type

Emulsion Unit :
Capacity - 2000kg
Electric Connection - 24 VDC

Hydraulic Control System :
Hydraulic Pump - Parker PGP511
Hydraulic Oil Tank - 100 litres

Electric System :
Electric Motor - 20kW (15hp)
Voltage - 380 - 440 - 550 - 660 - 1000 VAC
Frequency - 50 - 60 Hz
Electric Cable Reel - 80m, 3x4/0 - AWG (80mm), IP55 protection

Air System :
Compressor - CTN3B.11 .HA, 11kW / 15 hp

Weight: 11,650kg
