We have a used 2007, AMS 9700VTR PowerProbe Drilling Rig for sale on behalf of the owner.
We have a large number of images available of this rig (not all images shown here) and also the huge amount of drilling tooling and PVC sample liners that make up part of the sale.
Everything associated with the rig must go!

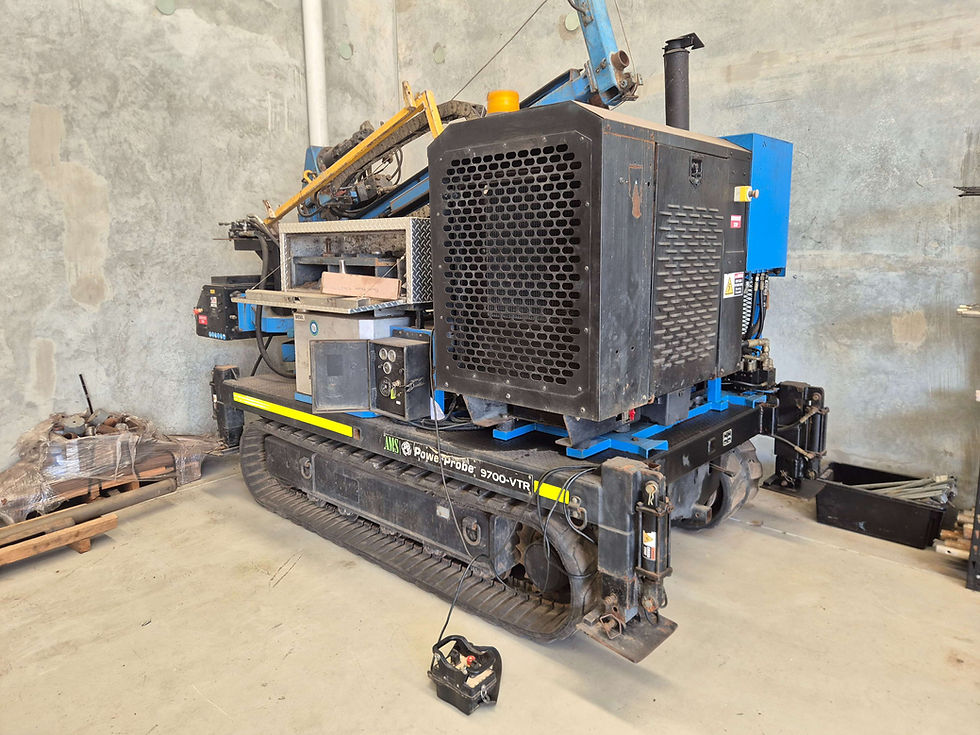

The AMS 9700 VTR hydraulic tracked drilling rig was manufactured in the USA by AMS Samplers, a reputable rig supplier in the USA and a long-time supplier to Drill Connex Ltd.
The track-mounted 9700-VTR is powered by a liquid-cooled, 100 hp diesel engine, and includes a 550 ft-lb hydraulic hammer. It comes standard with a 5,000 ft-lb., 2-speed auger drive head for Hollowstem Augering, and a two-metre probe stroke that accommodates 1.2m or 1.5m Direct Push Tooling.
The 9700-VTR also has 24 ton of pulling capacity. The rig has a durable, heavy-duty undercarriage with a wide-base platform and 457mm wide tracks – allowing it to carry more weight, increase torque, and reduce ground pressure.

Other Standard Features may include:
100 HP John Deere Diesel Engine with Block Heater (120v plug-in)
80” Mast Stroke with 34,000 lb Downforce and 48,000 lb Pullback
5,000 ft-lb hydraulic 2-speed auger motor

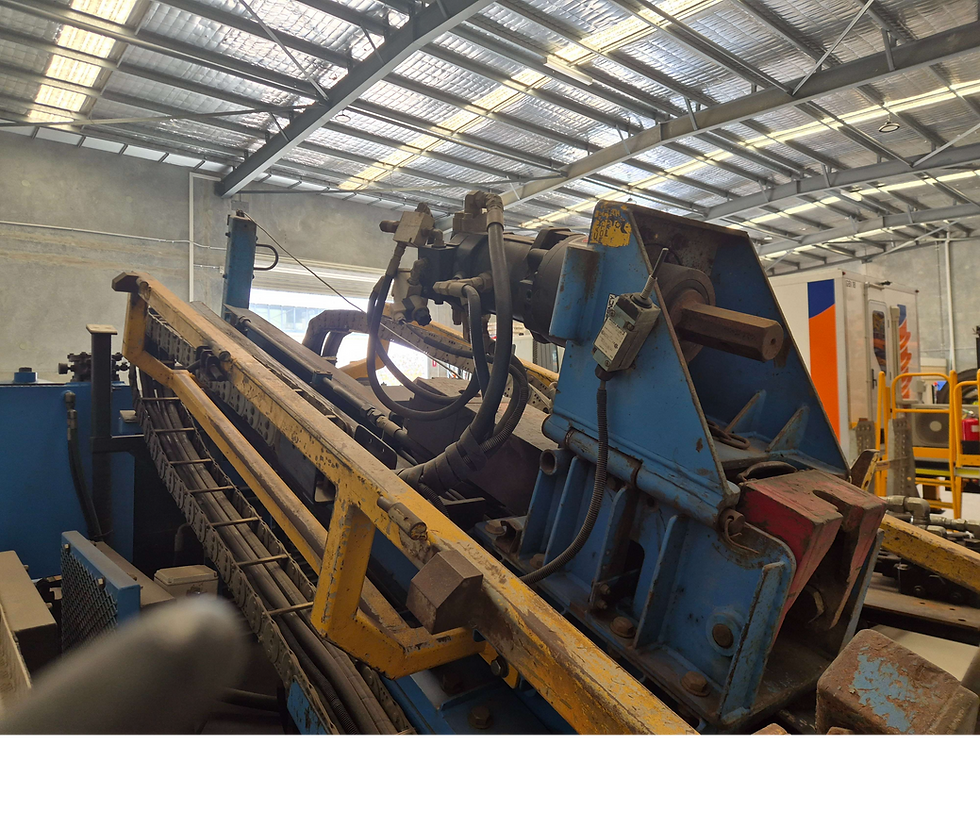

Adjustable mast for angled probing & drilling
Durable powder-coated finish, rubberized deck coating, and anodized metal power track
Enhanced control panel
Auxiliary hydraulic quick-connect ports
Electro-hydraulic valves
Spring loaded pull yoke assembly
Built-in tooling storage
Four hydraulic outriggers with removable pads
Adjustable Tooling Chain Vise
Wireless remote with pendant cord backup and storage compartment for the VTR’s track drives
Emergency Stop - Shut off - System
Electro-Hydraulic Valves w/ oEM Joystick & Detent Controls

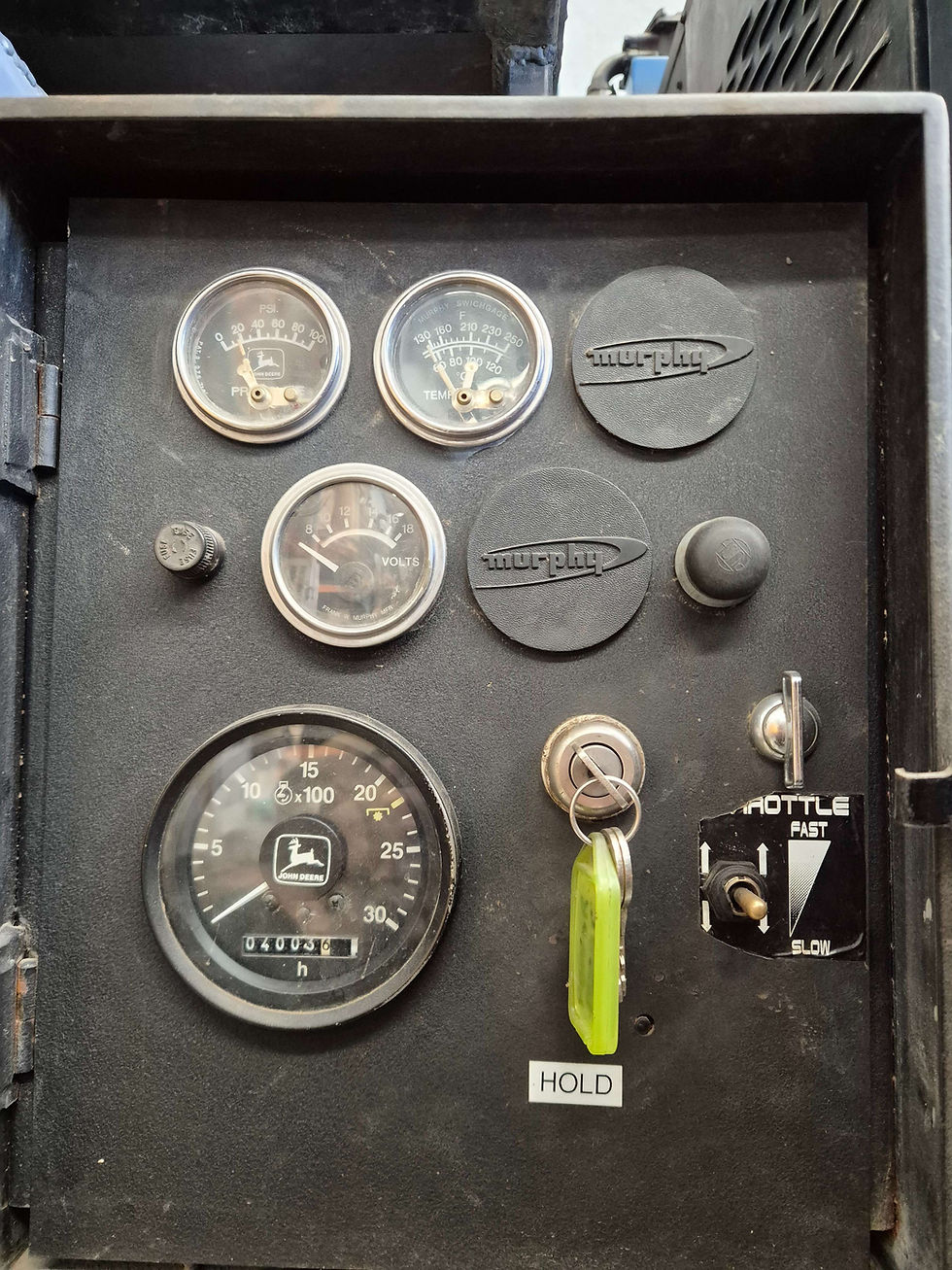

Hydraulic oil pressure and temperature gauges
Emergency stop - shut off - system
12 volt accessory outlet
Hour meter
Tooling vise

Technical Specifications:
Horsepower - 99hp
Engine rpm setting - 2,500rpm
Fuel Type - Diesel Engine
Track High Speed - 3.7mph
Track Low Speed - 2.5mph
Dimensions :
Weight: 6123kg
Overall Length: 3.784m
Overall Width: 2.05m
Overall Height (folded): 2.794m (2.743m)
Deck Height: 812mm
Mast Extended Height: 4.572m
Probe Stroke: 2.03m
Hydraulics:

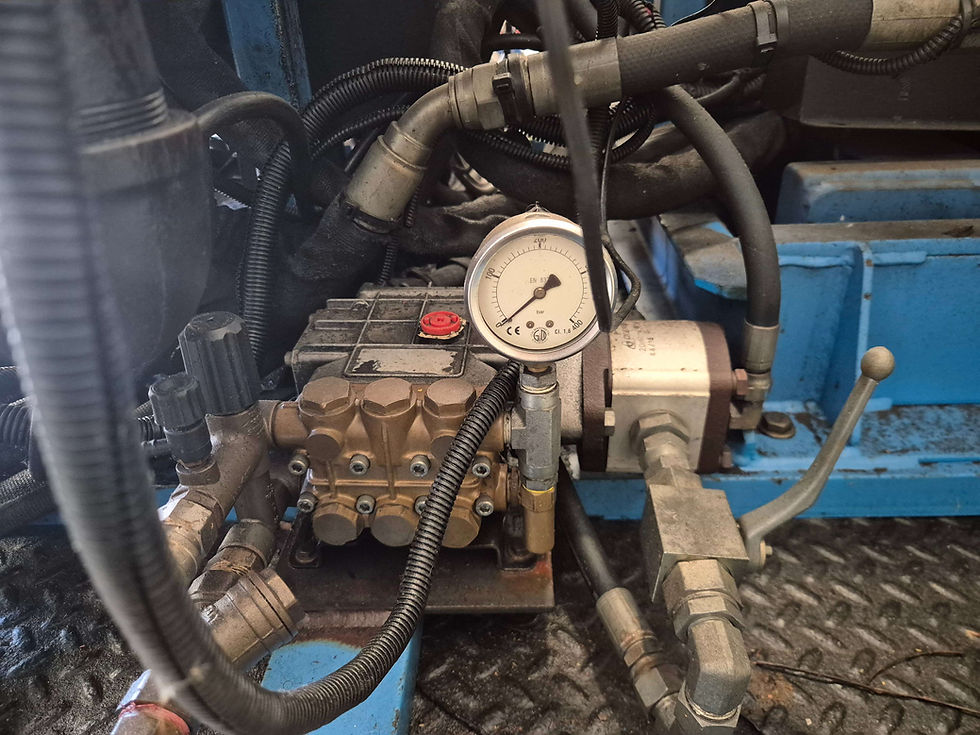

Double Pump: small pump 45.4 lpm @ 2,400psi
Hydraulic Oil Pressure: large pump - 3,000psi
Hydraulic Flow Rate: 136.27 lpm
Hydraulic Oil Cooler: 31,000BTU (Double)
Hydraulic Oil Capacity: 302.8 litres
Hydraulic Operation:
Down Force: 33,000lb (44,741Nm)
Pull-up-Force: 48,000 lb (65,079Nm)
Head Travel Rate Up: 10 - 14 sec
Head Travel Rate Down: 8 - 10 sec
In/Out Travel: 500mm
Horizontal Traverse: 1.74m
Foot Vertical Stroke: 1.32m
Probe Angles: 30 degrees to 102 degrees
Standard Auger: 5000ft/lb
Standard Hammer: 550ft/lb

We do not have the usual condition report for this rig as the vendor does not have the drilling rig knowledge to complete our document for this type of rig.
Viewing is welcomed by the vendor. The vendor is happy to start the machine and demonstrate the functions etc as required.
The rig and equipment is sold "as is where is".
The vendor can assist with shipping across Australia if required and Drill Connex can assist with shipping globally if required.
Currently the rig is located in Perth, WA.
The customers reason for sale is that they specialise in other drilling/testing techniques and this rig falls outside of that. They have also lost some key staff who use to operate this rig recently for the odd job they had for it.

Note: The price advertised does not include any GST.

Contact: Glenn on +64 021 855963 or glenn@drillconnex.co.nz
