Product Description

Drill Connex light towers offer high reliability, maximum safety, easy operation and simple maintenance. The Drill Connex Lighting Towers are suitable for various applications like Construction, Mining, Emergency situations, Materials handling, Large-scale events, Disaster relief and many more applications where reliable lighting is required. Several options available.



  • Its compact design allows for ultimate versatility and ease of use.
  • Telescopic, mechanical, 5 stage mast extension to 7.5m.
  • Heavy-duty winch design and integral forklift pockets.
  • Manual winch for extending and retracting the mast.
  • Separate lockable, weather protected, powder-coated steel doors.
  • Residual current device (RCD) protection.
  • Individual breaker switch for each light assembly.
  • Large capacity fuel tank.
  • Provides 360-degree light coverage.
  • 216,000 maximum lumen output.
  • Convenience outlets offer auxiliary power for electronics and small tools .
  • Without driving brake and parking brake.


Technical Specifications:

Rated   Power4.7KW5.5KW6KW7.4KW
Type   of Lights


4 * 1,000W

Luminous   Efficiency4 * 55,000   lumen
Lamps   Rotation

Allow   manual rotation of


Pack   Dimension(L*W*H)3,196 * 1,150 * 2,126mm
Mast   Height

Full   extension up to

9 meters

Tank   Capacity

100L,   Fuel Tank

(50 hours)

Engine   brandKubota
Engine   modelD905D110
Alternator   ModelLT3N-130/4LT3N-100/4LT3N-130/4LT3N-100/4

Note: Specifiations are subject to change without further notice.

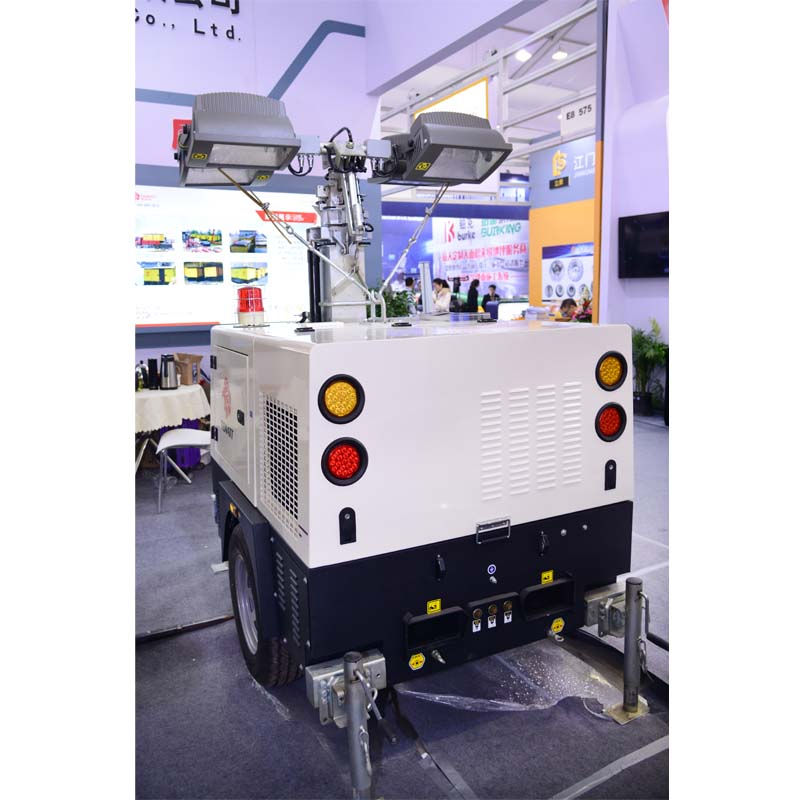

Lighting Tower MH-4000E
