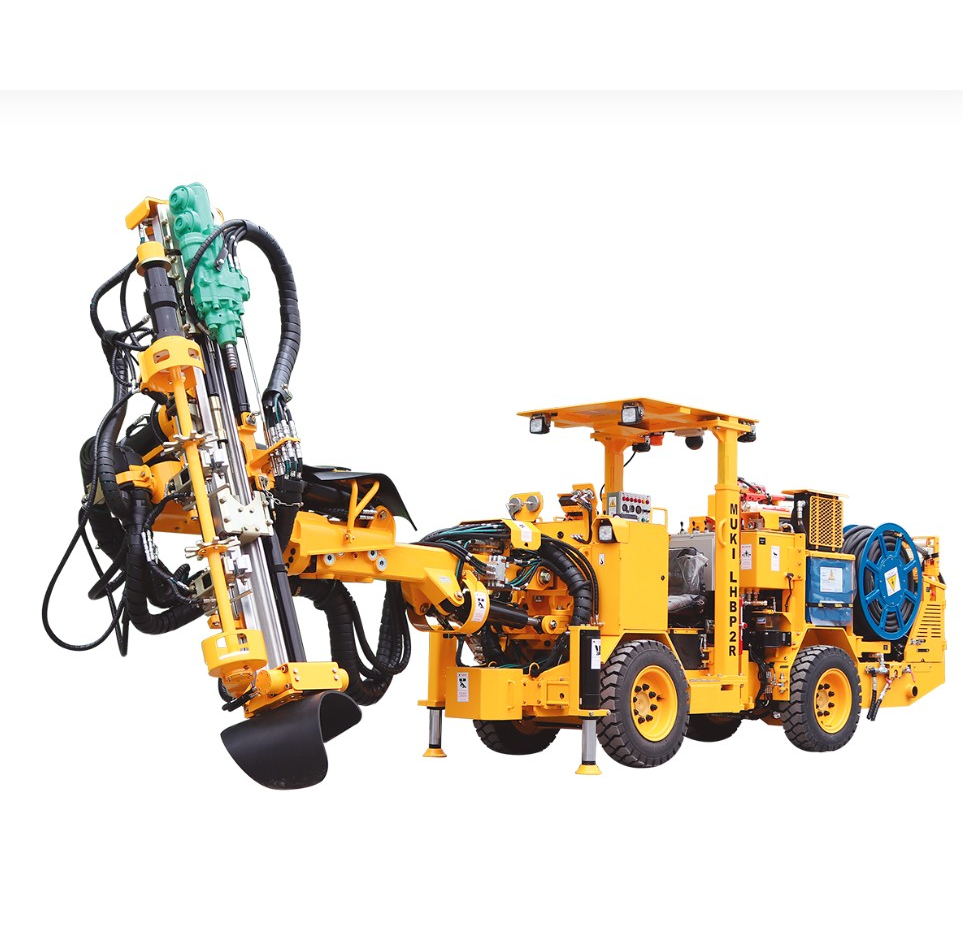

The Resemin, MUKI 22 Long Hole Drilling Rig is designed for use in very small sized sections. The MUKI 22 was specially designed to be disassembled and entered into drilling work zones through shafts avoiding the construction of access ramps.
The Resemin MUKI 22 is equipped with a Montabert 14kW Hydraulic Drifter model HC50 and a pendulum arm for feed traversing.
The MUKI 22 has two feed options for 900mm (3ft) rods (total length 2.16m) and 1.219m (4ft) rods (total length 2.47m) R32 and T38 sizes.
Drilling diameters of 45mm to 76mm and reaming up to 102mm. The maximum drilling depth is 15m. Traversal coverage with automatic parallelism 1.40m.
Basic Technical Specifications:
- Hydraulic Drifter: Montabert HC50, 14kW, 110-130bar, 56 Hz (3360bpm), 385Nm Torque, 0-193rpm
- Hole Diameters: 45mm - 76mm
- Shank: R32, T38 - male
- Drifter Weight: 104kg
- Feed: RE2500, feed extension 600mm, Feed 8000, 1.219 Rod length, HC50 drifter, total length 2,495mm or
- Feed: RE2500, feed extension 600mm, Feed 8000, 1.219 Rod length, HC95 drifter (21kW), total length 2,706mm
- Magazine: T38 / 8 + 1 rods
- Carrier: Model C11
- Traction: Hydraulic motor controller
- Steering: Hydraulic
- Tyres: 7.50 x R15 front, 7.00 x R12 rear
- Pendulum Arm: Lift angle +71 / -20 degrees, rotation 360 degrees, Pendulum angle +-40 degrees
- Electric Motor: 55kW (75hp), voltage 380 - 1000 VAC, 50 - 60 Hz
- Percussion metre: 24 V
- Electric Transformer: 1.5kVA
- Electric Cable: 3 x 2 - AWG (60m)
- Degree of Protection: IP 55
- Water & Air System: Compressor LE3 - 10 UV, 3 bar, 10.8cfm, Grundfoss pump, 5.1 l/min @ 1800rpm
- Angle Alignment: AMLH electronic aid for long hole drilling (measurement of rotation and feed parallelism, Rod/s quantity display, Electronic carousel control.
- Weight: 5,140kg
For a full list of the MUKI 22 Technical Specifications view the PDF Document on the previous page....
