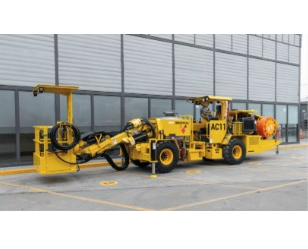

The Resemin ANFO CHARGER AC11, 2.5m x 2.5m to 4.5 x 4.5 m is a heavy-duty utility vehicle in underground mines equipped with a tank ANFO load capacity up to 500 kg (density of 840 kg / m³). for sections from 2.5 x Chassis for heavy duty, articulated 4WD self propelled with a Diesel engine, Caterpillar C4.4 ACERT, Tier 3 of 106 kW. Both roofs of the cabin and the basket are certified with FOPS and ROPS

Specifications
Basket :
Loading capacity 300kg
Hydraulic Arm Control
FOPS Certified
ANFO pneumatic control

Boom :
Model - Boom 3AP-AC11
Boom Extension - 1000mm
Lift Angle - +48° / -23°
Swing Angle - ±30°
Hydraulic Cylinders - Parker

Carrier :
Model - S35
Diesel Engine - Caterpillar C4.4 ACERT, Tier 3, Power 106kW @ 2200rpm
Exhaust Catalyser - DOC
Transmission - Hydrostatic
Rear Axle Oscillating
Tramming Speed - 9 km/h
Service Brakes - Hydrostatic
Emergency & Parking Brakes - SAHR
Tyres - 10.00 x R15
Hydraulic Jacks - 2 front
Canopy - ROPS / FOPS certified
Fuel Tank - 100 litres
Battery -  2 x 12V, 95Ah
Electrical System - 24 VDC
Video Camera
Centralised Greasing System - SKF
Automatic Fire Suppression -  ANSUL, 4 nozzles
Fire Extinguisher -  1 x 9kg

Electrical System:
Electric Motor - 15kW (20hp)
Voltage - 380 - 440 VAC, option 550 - 690 - 1000VAC
Frequency - 50 - 60 Hz
Electric Cable - 70m, 3x2/0 AWG, IP55
Ionizer

Air System:
Compressor - CT6B
Maximum Capacity - 120 cfm
Working Pressure - 8 bar (116 psi)

A/C Enclosed Cabin - FOPS/ROPS Certified
Hose Reel 20m

ANFO Tank:
Capacity - 500kg (density of 840kg/m3)
Electric Connection - 24 VDC

Weight: 10,850kg OR with enclosed Cabin 11,075kg
