Thanks to the experience gained with the previous version, Ripamonti are pleased to present thier new compact drilling unit, the BIRDIE 517.
The BIRDIE 517 is ideal for Foundation Drilling, Civil Engineering and Quarrying works, it is also a valid solution for Anchors, Micropiles, shallow Water Wells and for Renovation work.
The BIRDIE offers DTH Drilling with the use of 3" and 4" DTH Hammers, Rotary Drilling and Percussion Drilling.
Technical Specifications:
Engine: Kubota V1505T CR-TE stage V, 44HP
Crawler: Extendible track with 250mm shoes
Drill Mast: Speedy Drill 250
Stroke Length: 1800mm - 2300mm
Pull Back / Down: 1500kg (2250kg optional)
Lateral Boom Swing: +/- 90 degrees
Mast Rotation: 180 + 180 degrees

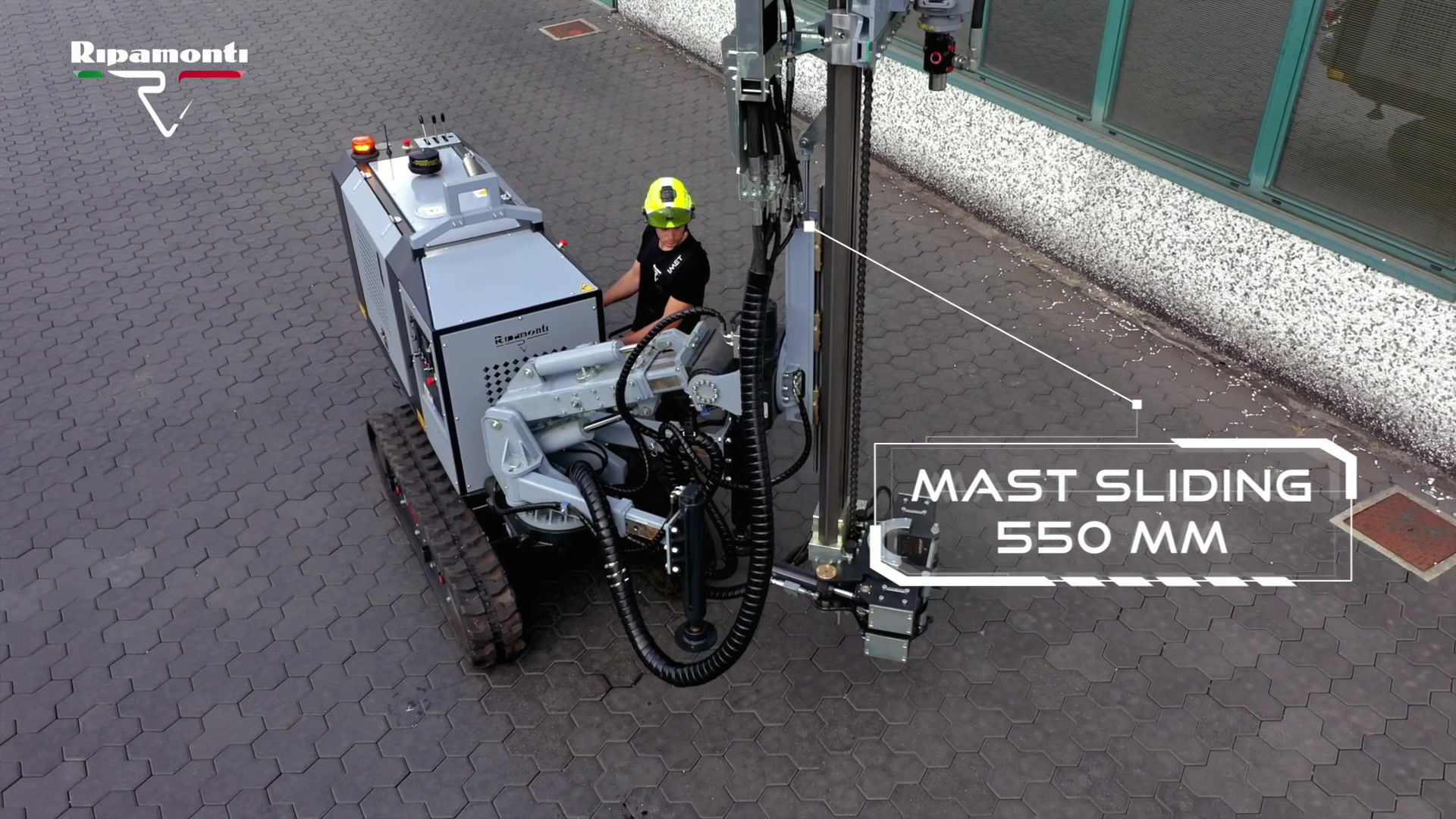

Backfeed: 550mm
Stabilisers: 4 (2 front, 2 back)
Zoom: 250mm
Hydraulics: Variable displaced piston pump, Max flow 120l/min, Max pressure 220 bar (3190psi)
Controls: Radio remote control and LCD screen for diagnostics and settings
Data Log: On request
Weight: 2500 / 300kg
Wheel Base: 830mm - 1230mm
Transport Height: 2100mm
Total Length: 4200mm
Drill Mast Accessories and Options:
Clamp & Break Device: 25-90 or 50-156 or 54-180
Slidramatic: Rotary Head lateral movement
Winch: 800kg winch with pulley
Water Pump: 25L at 40 bar (580 psi)
Lubricator: 1L - 6L - 9L
Safety Guard Options:
Manual: Manual opening type
Electronic: Electronic front guard and lateral steel guard
Hydraulic: Corner opening hydraulic type
Rotary Heads and Drifters:
Rotary Heads: RP100, RP200, RP280, RP500, TM1C8
Drifters: EURODRILL RH1 X, RH2 X, RH4 X
Floating Spindle kit for DTH available
Other Drifters: Available on request
