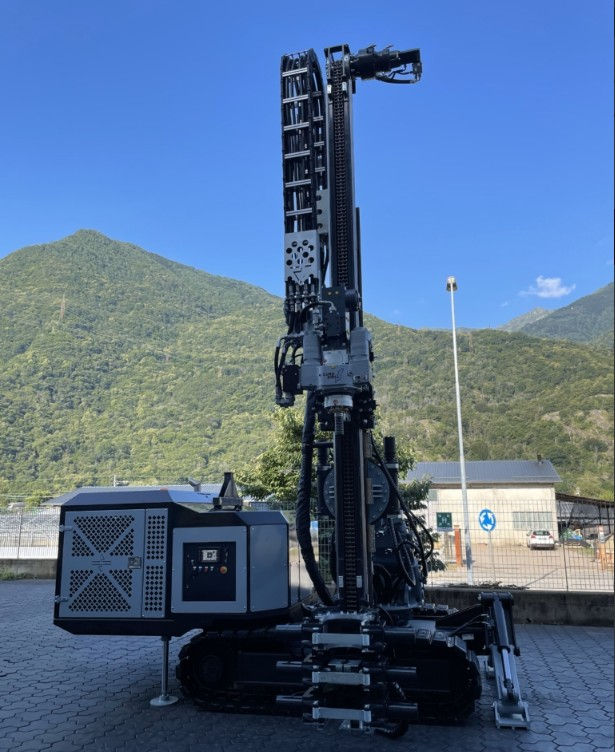

The Ripamonti Eagle 1021 drilling machine is a Robust, Powerful and Compact drilling machine.
The high-quality hydraulic system consists exclusively of proportional distributors with both electric (radio control) and manual operation, to allow the machine to operate even in the event of damage to the radio control system.
The Eagle 1021 Drilling Rig allows drilling from 80mm to 220 mm in diameter for the execution of Micropiles, Tie Rods and various perforations for consolidation works with the use of Pneumatic Rotary Percussion down-the-hole (DTH) hammers, water down-the-hole hammers (Wassara), perforation systems with coating (Supermaxbit, Ultramaxbit, Superjaws) rotary drilling systems (tricones, drag bits and PDC bits etc.), Rotary hydraulic hammers for the application of self-drilling anchors up to a drilling diameter of 185 mm, hydraulic rock hammers for drilling in tunnels (radial anchors, nails).
The radio remote control allows the operator to always work in conditions of maximum safety both during the drilling phases and during the delicate maneuvers of loading/unloading and positioning on site.
The drilling slide has been designed to ensure low wear of the components and easy replacement of the side guides in case of excessive wear of the same.
The new boom kinematics equipped with a slewing ring, fifth wheel on the mast and telescopic zoom, offers a large drilling area with easy and precise positioning.
Engine: Kubota V3800 Stage V (95kW)
Crawler: Fixed track with 400mm shoe
Drill Mast: S300 Gear Box
Stroke Length: Standard 3350mm (other options available)
Pull Back / Down: 4500kg / 6500kg option
Lateral Boom Swing: +/- 90 degree
Mast Rotation: 180 + 180 degree
Backfeed: 850mm
Stabilsers: 4, (2 front and 2 back)
Zoom: 600mm
Hydraulics: Variable displacement piston pump, Max flow rate 270 l/min, Max pressure 200 bar (2900psi)
Controls: Radio Remote Control and LCD screen for diagnostic and settings
Data Log: On request
Length Tramming: 6100mm
Length Working: 5150mm
Width: 2000mm
Mast Height: 5300mm (with 3500mm stroke length)
Drill Mast Accessories & Options
Clamp & Brake Device: 50-156 or 54-180 or 50-190 or 50-250
Slidramatic: Rotary head lateral movement
Winch: 800kg winch with pulley
Water Pump: 25L at 40 bar (580psi)
Lubricator: 1L - 6L - 9L
Safety Guard Options
Manual: Manual opening type
Electronic: Electronic front guard and lateral steel guard
Hydraulic: Corner opening hydraulic type
Rotary Heads and Drifters
Rotary Heads: RP800, RH6, RH10
Drifters: EuroDrill RH4 X, RH6 X, RH10 X
- floating spindle kit for DTH available
Other Drifters: Available on request
