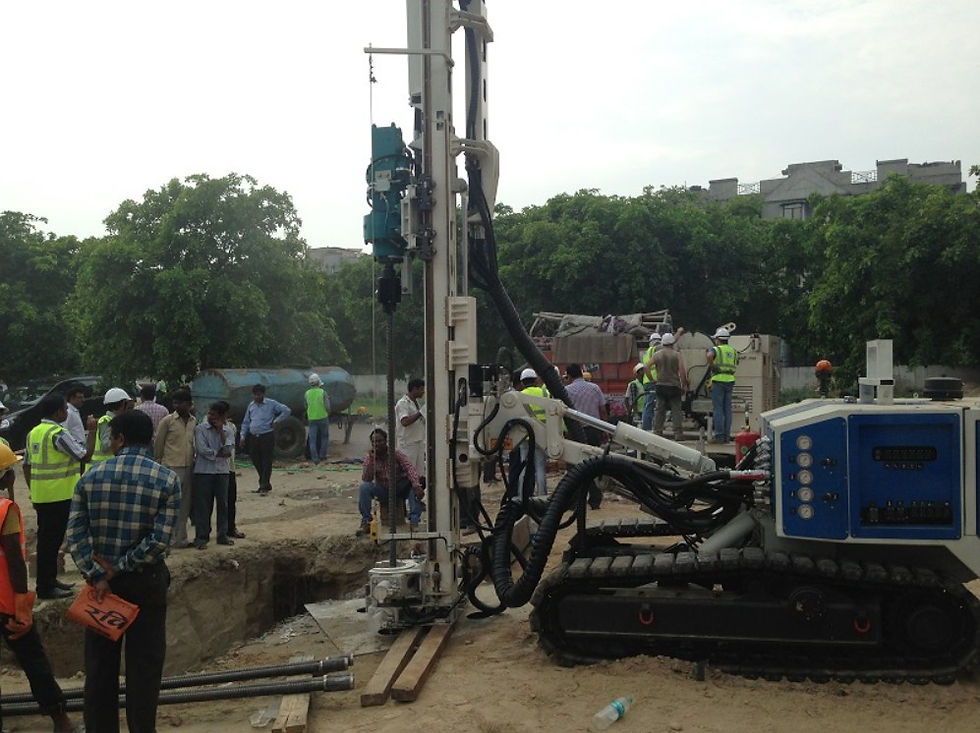

The Ripamonti Eagle 800 Drilling Rig is a Robust, Powerful and Compact Drilling Rig.
The high-quality hydraulic system consists exclusively of proportional distributors with both electric (radio control) and manual operation, to allow the rig to operate even in the event of damage to the radio system.
Borehole diameters range from 80mm to 220mm for the execution of Micropiles, Tie Rods and various perforations for consolidation works with the use of Pneumatic Rotary Percussion down-the-hole hammers (DTH), water down-the-hole hammers (Wassara), perforation systems with coating (Supermaxbit, Ultramaxbit, Superjaws) Rotary Drilling systems (tricones, triblades, etc.), Rotary hydraulic hammers for the application of self-drilling bars up to a drilling diameter of 185 mm and hydraulic rock hammers for drilling in tunnels (radial anchors, nails).
The tilting track allows the operator to optimise the balance of the Drilling Rig during movements and loading and unloading operations.
The radio remote control allows the operator to always work in conditions of maximum safety both during the drilling phases and during the delicate maneuvers of loading/unloading and positioning on site.

Technical Specifications:
Engine: Kubota V3800 Stage V (95kW)
Crawler: Fixed Track with 400mm shoe
Drill Mast: S300 Gear Box
Stroke Length: Standard 3350mm (other stroke lengths available)
Pull Back / Pull Down: 4500kg / 6500kg option
Lateral Boom Swing: +/- 90 degrees
Mast Rotation: 180 + 180 degrees
Backfeed: 850mm
Stabilisers: 4 (2 front and 2 back)
Zoom: 600mm
Hydraulics: Variable displacement piston pump, Max flow 270l/min, Max pressure 200 bar (2900psi)
Controls: Radio Remote Control and LCD screen for diagnostics and settings
Data Log: On request
Weight: 5800kg / 6800kg
Width: 1675mm
Transport Height: 2350mm
Total Length: 3350mm / 4900mm

Drill Mast Accessories and Options:
Clamp & Break Device: 50-156 or 54-180 or 50-190 or 50-250
Slidramatic: Rotary Head lateral movement
Winch: 800kg winch with pulley
Water Pump: 25L at 40 bar (580 psi)
Lubricator: 1L - 6L - 9L

Safety Guard Options:
Manual: Manual opening type
Electronic: Electronic front guard and lateral steel guard
Hydraulic: Corner opening hydraulic type

Rotary Heads and Drifters:
Rotary Heads: RP800, RH6, RH10
Drifters: EURODRILL RH4 X, RH6 X, RH10 X
                  Floating Spindle kit for DTH available
Other Drifters: Available on request
