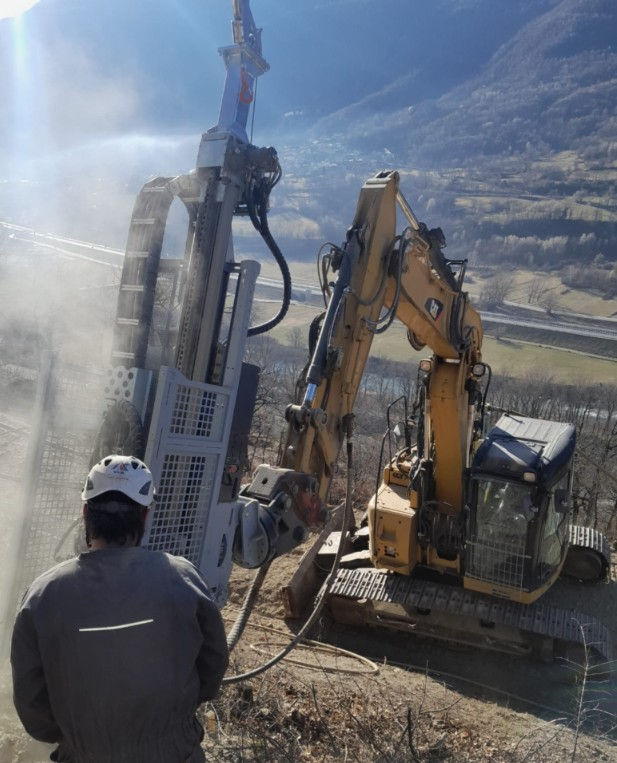

The Ripamonti EX224 SD200 Drilling Attachment is a reasonably light weight Drilling Attachment for connection with Excavators, Telehandlers and other carriers.
There is a choice of drilling techniques by utilising a Hydraulic Rotary Head for Rotary Drilling OR a Hydraulic Rotary/Percussion Head for Rotary Percussive Drilling OR a Hydraulic Drifter for high-speed small diameter borehole drilling into Hard Rock.
This unit also offers Mast Rotators, Feed Extensions, Clamp Breakers, Remote Controls, a Variable Stroke Mast, Line Oilers and more.

Technical Data
Borehole Diameters: Rotary Drilling 76mm - 180mm
Borehole Diameters: Hydraulic Drifter 38mm - 102mm
Borehole Diameters: Rotary Percussion 64mm - 102mm
Excavator Size: >10 tons, (12 ton or larger preferred with optional extras added)
Stroke Length: 3.3m standard
Pull Down / Pull Back: 2500kg
Proportional Hydraulic Valving
Weight: starting at 1300kg
Rotary Head Torque: Up to 437 daNm (446kgm)
Rotary Head Speed: standard option 40 - 80RPM, 76 lpm, 150 bar.
Manual Centraliser Included.
Drill Mast: S200 Gear Box
Single Slew WDL343 for mast rotation (180 + 180)
Back Feed:  700mm

Optional Items:
90 degree cylinder mounted before the slew for extra mast inclination
Additional slew WDL343 DM unit with 90 degree structure for extra mast inclination
Variable Stroke Mast
Spider Excavator Foot
Multiple Rotary Head sizes to choose from (Eurodrill)
Multiple Rotary Percussive Heads to choose from (Eurodrill)
Multiple Hydraulic Drifters to choose from (Doofor)
Hydraulic Clamping and Breaking device, multiple sizes available
Water Pump
Line Oiler
