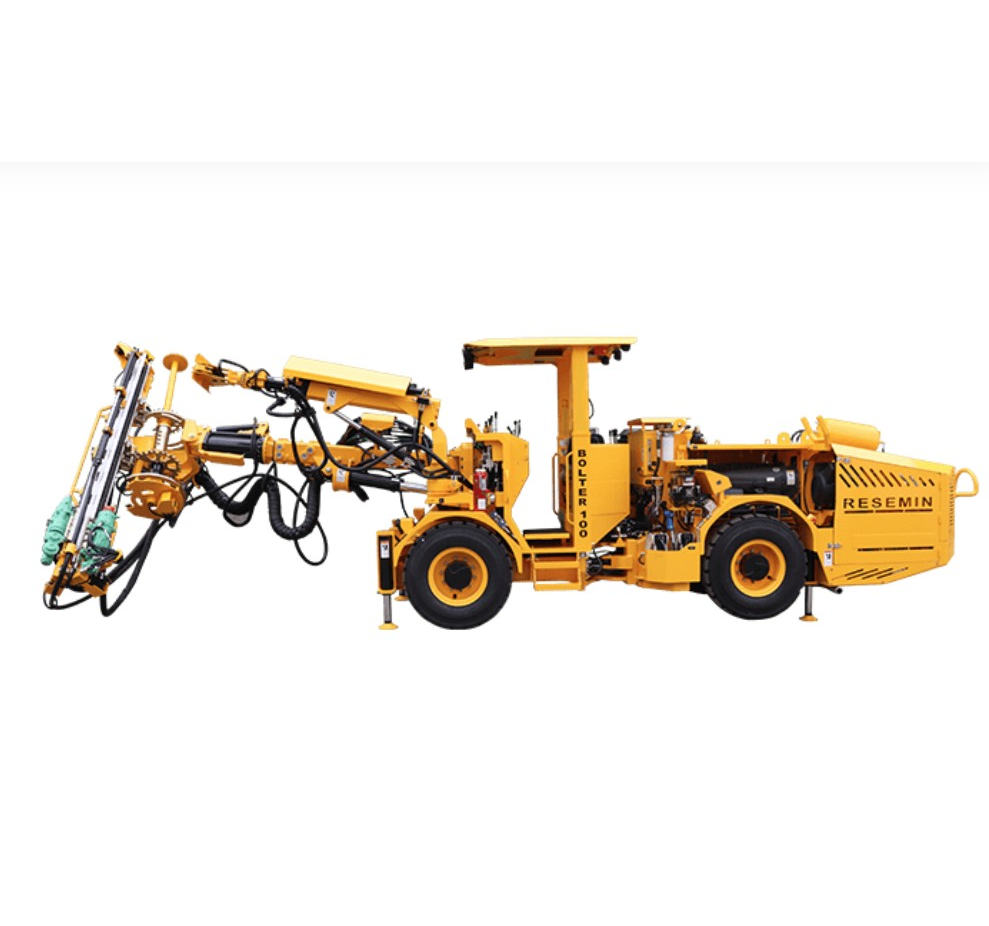

The Resemin BOLTER 100 is the perfect solution for Roof Bolting and Mechanised Meshing applications. The Bolter 100 allows the operator to efficiently and safety reinforce Roof Structures in Underground Mines and Tunnel's. The Bolter 100 is ideal for sections of 4.5m x 4.5m and up to 8.5m in height.
Equipped with Bolting Turret model T99 with two Montabert Drifters, 1 x HC50 for Drilling and 1 x HC28 for Bolting and a magazine of bolts.The Bolter 100 can install Split Set bolts, Rebar with resin or cement, Swellex, Hydrabolt and Python.
The Boom Mesh Manipulator option allows mechanised meshing. The entire operation can be performed safely by the operator.
Other features are:
- Strong chassis for heavy duty applications,
- Articulated 4WD,
- Self-propelled with diesel engine and electrohydraulic system for drilling.
Basic Technical Specifications:
- Hydraulic Drifter: Montabert HC50, 14kW, 110 - 130bar, 62.5Hz (3750bpm), 385Nm Torque, 0-193rpm
- Bolting Drifter: Montabert HC28, 9.5kW, R32 female, 103kg
- Hole Diameters: 33mm - 45mm
- Air Consumption, flushing: 7m3/min (8-10 bar)
- Shank: R32 - female
- Drifter Weight: 104kg (HC50)
- Bolting Turret: T99, 10 bolts with 20cm plate, 12 bolts with 15cm plate, feed extension 340mm, Rod length 3,353mm, total Turret length 4,213mm or
- Bolting Turret: T99, 10 bolts with 20cm plate, 12 bolts with 15cm plate, feed extension 340mm, Rod length 3,962mm, total Turret length 4,823mm
- Bolting Turret: T99, 10 bolts with 20cm plate, 12 bolts with 15cm plate, feed extension 340mm, Rod length 4,572mm, total Turret length 5,433mm
- Carrier: Model C77.4
- Diesel Engine: CAT C4.4 ACERT, Tier 3
- Exhaust Catalyser: DCO (Diesel Oxidization Catalyst)
- Transmission: Hydrodynamics
- Powershift Gearbox: Dana, T20000
- Emergency & Parking Brakes: SAHR
- Steering: articulated carrier =/- 40 degrees
- Tyres: 12.00 x R20
- Boom: Boom 16.4, 360 degree rotation, extension 1,600mm
- Electric Motor: 55kW (75hp), voltage 380 - 440 VAC (optional up to 1000VAC), 50 - 60 Hz
- Electric Cable: 3 x 1 - AWG (90m)
- Degree of Protection: IP 55
- Water & Air System: Electric Compressor CTN3, 8 bar, Grundfoss pump CR 5 - 9, 115 l/min @ 3500rpm
- Weight: 15,610kg
For a full list of the Bolter 100 Technical Specifications view the PDF Document on the previous page....
