New Digital capture system All-in-one for testing CPTu and S-CPTu


The new Pagani Geotechnical TGAS-12 is a data-logger capable of acquiring CPTu and S-CPTu (Seismic) testing data as well as Vane Test and Dissipation Tests without the aid of computers and bulky wiring.

The touch-screen monitor of the TGAS-12 Data Logger makes the use even more fluid and intuitive, while the new simplified program guides the operator in every step with the aim of reducing errors and test execution times. This new TGAS-12 system automatically detects information regarding the connected piezocone, the sensors installed and the connection of the Seismic Module.

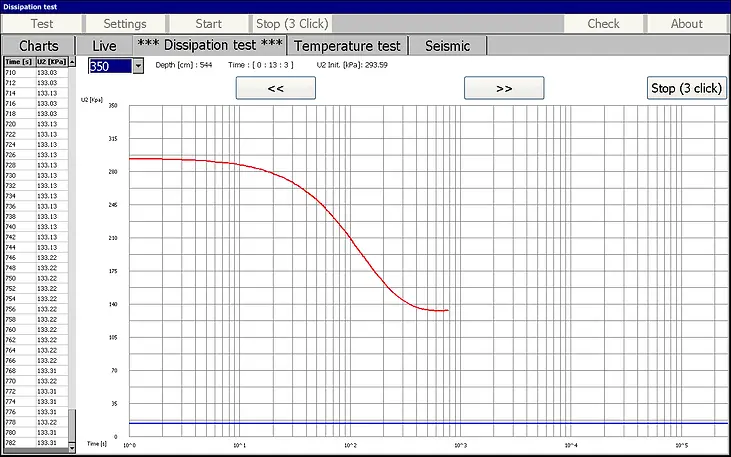

During the execution of the test five tabs divide the different types of test, these are:

  • Dissipation,
  • Temperature,
  • Seismic,
  • and two different modes of visualization of the CPTu test: Graphic and Live.


As with previous Pagani Geotechnical Data Logger versions, once the tests are finished you can download all the data to a USB stick to work them later with the interpretative software (not included).

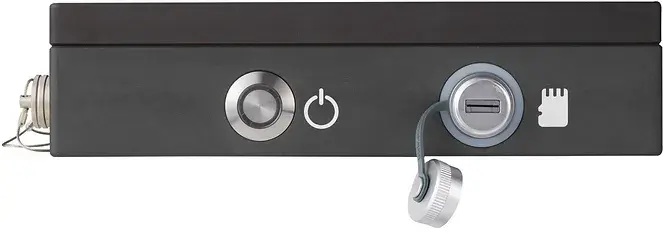

TGAS-12 Data Logger
