Skid Steer Drilling Attachments
A common solution in many industries, Rock Drilling Attachments are becoming a "must have" item in the toolkits of many Construction Businesses and also Solar Farm Developers as installation challenges become more prevalent.
In these situations, Rock Drilling Attachments are a very real solution.
Tackling Hard Ground

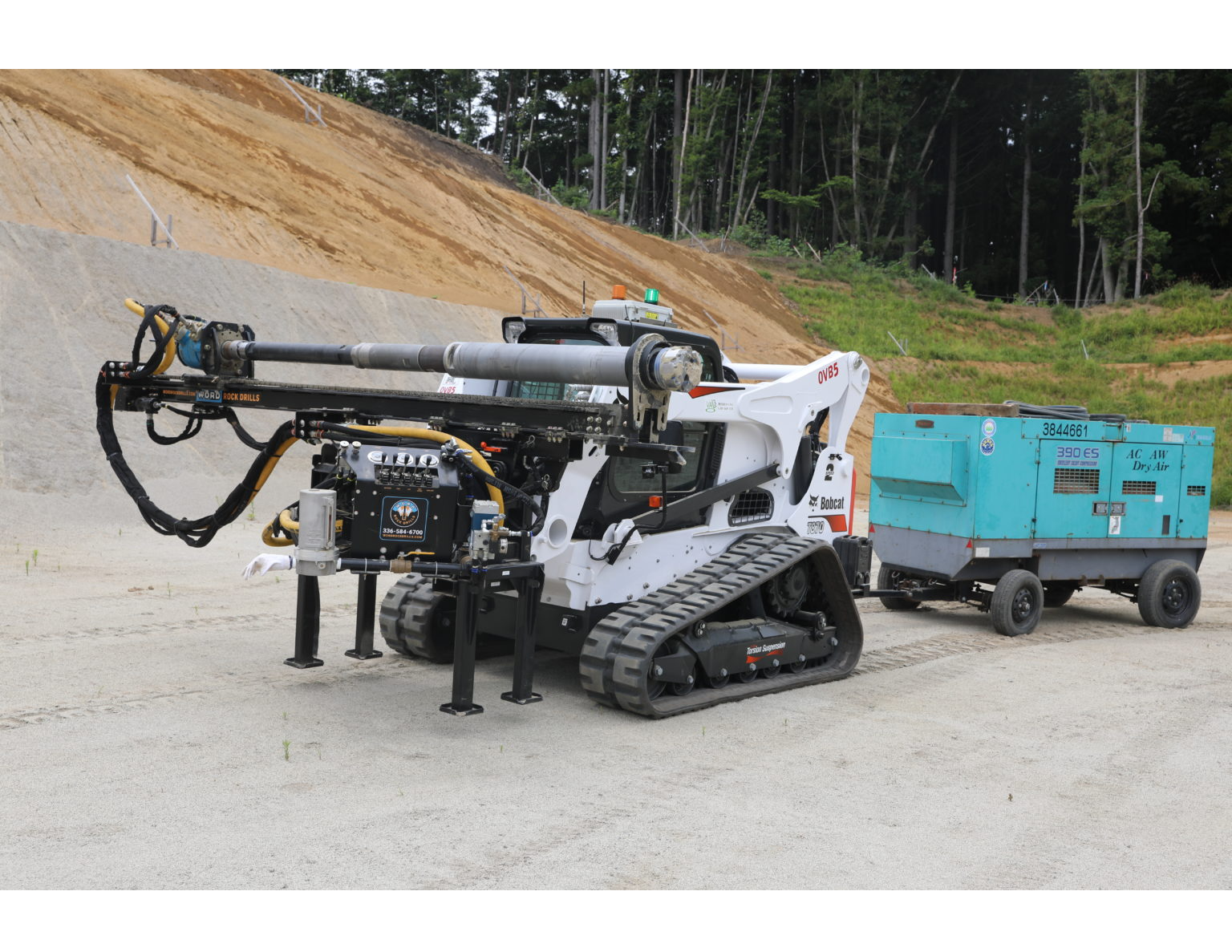

Our Skid Steer Rock Drilling Attachments are easy to use, and they easily attach to any skid steer unit.

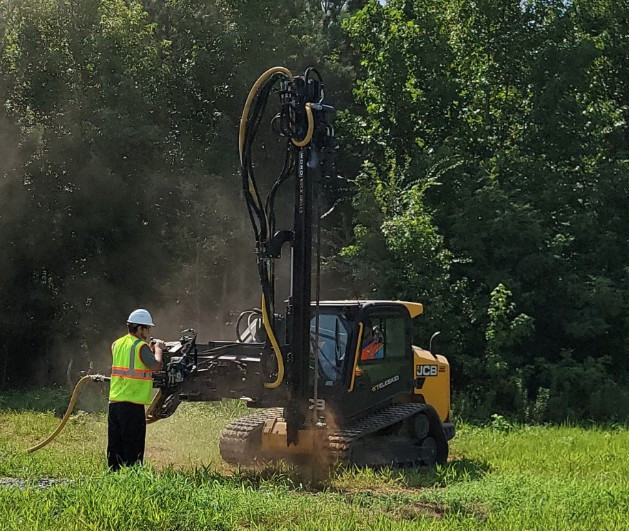

Functioning as a traditional Rock Drill our SS Drilling Attachments can be used to easily manoeuvre through a Solar Farm Site to drill out refusal holes or predrill holes before actual installation begins.
Many solar customers globally have seen the competitive advantage of owning their own Skid Steer Drilling Attachment and the efficiency it brings to their jobsite.
With the capacity to break through hard rock in hole sizes up to 350mm (14″), the SS Series Attachments are a serious contender.
Price on Application
SS57 Drilling Attachment
Hole Diameter Range – Rotary: Typically 90–172 mm (3.5–6.8 in)
Hole Diameter Range – Percussion: Typically 38–127 mm (1.5–5.0 in)
Hole Depth Range – Rotary: Typically 0–30 m+ (0–98 ft+)
Hole Depth Range – Percussion: Typically 0–20 m+ (0–65.6 ft+)
Minimum Skid Steer Size: Usually the larger sizes; dependent on options included
Standard Stroke Length: 3,660 mm (12.0 ft); other lengths available
Standard Mast Length: 4,410 mm (14.5 ft); other lengths available
Pullback: 3,175 kg (7,000 lb)
Rotation Speeds: 0–500 RPM, adjustable
Rotation Torque: Up to 3,316 lb-ft (458 kg-m)
Rotary Head Weight: 65 kg (143 lb)
Shank Type Size: 3⅜ in API adaptors available (2⅜ in API)
Feed Extension: 600 mm (2.0 ft)
Controls: Standard radio controls with 12 functions/controls
Price on Application
SS125 Drill Attachment
Hole Diameter Range – Rotary: Typically 76–300 mm (3.0–11.8 in)
Hole Diameter Range – Percussion: Typically 38–127 mm (1.5–5.0 in)
Hole Depth Range – Rotary: Typically 0–30 m+ (0–98 ft+)
Hole Depth Range – Percussion: Typically 0–20 m+ (0–65.6 ft+)
Minimum Skid Steer Size: Usually the larger sizes; dependent on options included
Standard Stroke Length: 3,660 mm (12.0 ft); other lengths available
Mast Length: 4.41 m (14.5 ft); other lengths available
Pullback: 3,175 kg (7,000 lb)
Rotation Speeds: 0–300 RPM, adjustable
Rotation Torque: Up to 14,400 lb-ft (1,990 kg-m)
Rotary Head Weight: 100 kg (220 lb)
Shank Type Size: 2⅞ in API
Feed Extension: 600 mm (2.0 ft)
Controls: Standard radio controls with 12 functions/controls
Weight: Approximately 1,960 kg (4,321 lb) standard, with one single 360° rotator and no other options
